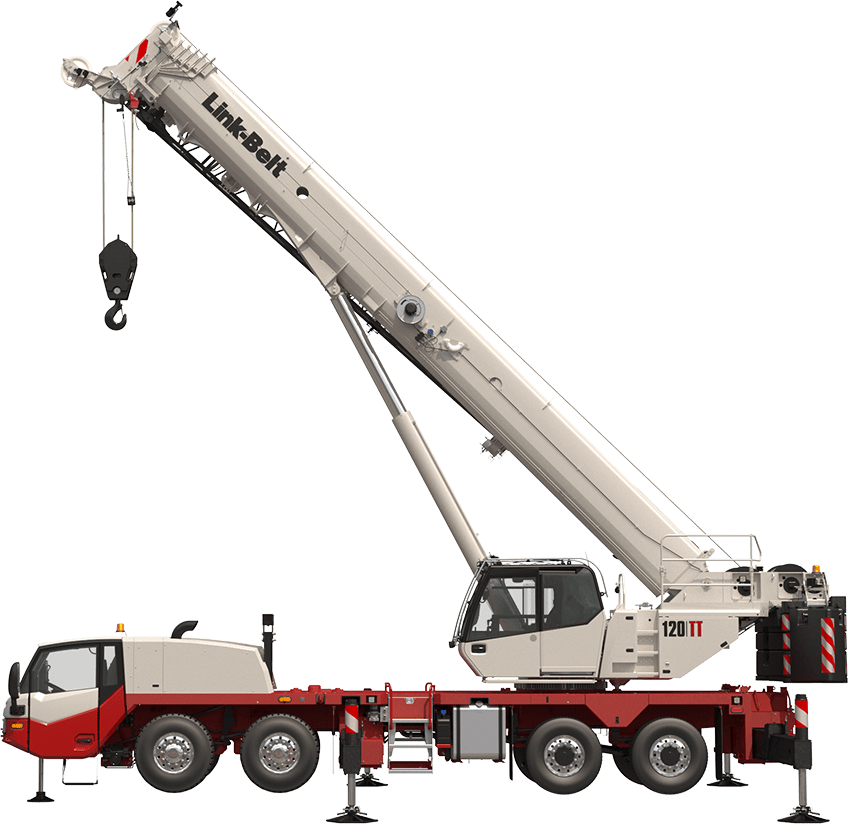

120|TT

Nominal Capacity @ Radius
120 USt @ 7 ft
110 mt @ 2.1 m
Standard Boom
38.3 ft – 164.1 ft
11.7 m – 50 m
Telescope System
Pin & Latch
Pin & Latch
Attachment - Option 1
A: 35 ft Bi-Fold Lattice Fly/ B: 9.5 ft – 35 ft – 58 ft Bi-Fold Lattice Fly
A: 10.7 m Bi-Fold Lattice Fly / B: 3 m – 10.7 m – 17.7 m Bi-Fold Lattice Fly
Attachment - Option 2
(1) or (2) 16 ft insert(s)
(1) or (2) 4.9 m insert(s)
Maximum Tip Height
262 ft
79.7 m
Maximum Line Pull
23,632 lbs
105.1 kN
Maximum Speed
354 fpm
107.9 m/min

Key Features

  • Greaseless 38.3 ft – 164.1 ft pin and latch six-section boom
  • Link-Belt SmartFly: different configurations to address any job site need
  • NEW for the 120|HT: three-piece (9.5 ft – 35 ft – 58 ft) fly with integrated heavy-lift section: offsetable to 0°, 15°, 30°, and 45°
  • One or two available lattice extensions to reach max tip height of 262 ft
  • Full three-piece fly is stowable on the machine, and no capacity deducts for stowed attachment
  • Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
  • Steerable rear axles — simple control switch in the carrier cab
  • Greatly reduced turning radius during travel
  • Front and rear tires and wheels are interchangeable
  • Industry-first suspension and axle design: independent air ride suspension and air disc brakes
  • Highest gross axle rating (51,200 lbs on front tandem) of any other truck crane in the market
  • Transports at 110,000 lbs with 20,000 lbs of counterweight, three-piece fly, 60-t block, and 10-t ball installed
  • Cummins X12 Engine: EPA 2022 Compliant On-Highway 455 HP Engine
  • ZF TraXon (no clutch pedal) Manual Transmission
  • Link-Belt Pulse 2.0 operating system, including 81-position V-CALC-individual outrigger extension system
  • Link-Belt Vision Package & full LED lighting package – Standard
  • All new carrier cab: NEW wider carrier cab — nine inches wider than previous generation of truck crane cab
  • TPMS: Wireless Tire Pressure and Temperature Monitoring
  • SmartStack counterweight monitoring system
  • Flat deck design — maintains four points of access regardless of upper position
