Lattice Crawler Cranes

Heavy-duty power for the most demanding jobs.

U.S. & Canada Latin America

Imperial Metric

138 HSL
Lattice Crawler Cranes

Base Rating

80 USt @ 12 ft

73 mt @ 3.6 m

Boom Lengths

Tube: 40 ft – 200 ft

Tube: 12.2 m – 70 m

Boom Lengths

Angle: 40 ft – 150 ft

Angle: 12.2 m – 45.7 m

Fixed Jib Lengths

30 ft – 60 ft

9.1 m – 18.3 m

Fixed Jib Offsets

5°, 15°, & 25°

Maximum Combination (Fixed Jib)

Tube: 180 ft + 60 ft

Tube: 54.9 m + 18.3 m

Maximum Combination (Fixed Jib)

Angle: 150 ft + 60 ft

Angle: 45.7 m + 18.3 m

Maximum Tip Height (Fixed Jib)

Tube: 242 ft

Tube: 73.8 m

Maximum Tip Height (Fixed Jib)

Angle: 213.7 ft

Angle: 65.1 m

Engine Make & Model

Cummins QSB6.7 Tier 4 Final

Maximum Hoist Line Pull / Speed

31,182 lbs / 450 fpm

14 143 kg / 137.2 mpm

Working Weight

145,403 lbs

65 953 kg

Main Transport Load

88,121 lbs w/ tracks

39 971 kg w/ tracks

Documents
Download Brochure
Download Technical Data

Imperial Metric

218|V
Lattice Crawler Cranes

Base Rating

110 USt @ 11 ft

100 mt @ 3.4 m

Boom Lengths

40 ft – 230 ft

12.2 m – 70.1 m

Fixed Jib Lengths

30 ft – 75 ft

9.1 m – 22.9 m

Fixed Jib Offsets

5°, 15°, & 25°

Maximum Combination (Fixed Jib)

Tube: 200 ft + 75 ft

Tube: 61 m + 22.9 m

Maximum Tip Height (Fixed Jib)

278.6 ft

84.9 m

Engine Make & Model

Cummins QSB6.7 Tier 4 Final/Stage V

Maximum Hoist Line Pull / Speed

44,565 lbs / 583 fpm

20 200 kg / 177.7 mpm

Working Weight

204,470 lbs

92 746 kg

Main Transport Load

99,960 lbs w/ tracks

45 300 kg w/ tracks

Documents
Download Brochure
Download Technical Data

Imperial Metric

228 HSL
Lattice Crawler Cranes

Base Rating

130 USt @ 12 ft

118 mt @ 3.7 m

Boom Lengths

Tube: 45 ft – 235 ft

Tube: 13.7 m – 71.6 m

Boom Lengths

Angle: 45 ft – 155 ft

Angle: 13.7 m – 47.2 m

Fixed Jib Lengths

Tube: 30 ft – 75 ft

Tube: 9.1 m – 22.9 m

Fixed Jib Offsets

5°, 15°, & 25°

Maximum Combination (Fixed Jib)

Tube: 205 ft + 75 ft

Tube: 62.5 m + 22.9 m

Maximum Tip Height (Fixed Jib)

284 ft

86.6 m

Engine Make & Model

Cummins QSB6.7 Tier 4 Final

Maximum Hoist Line Pull / Speed

44,565 lbs / 536 fpm

20 214.3 kg / 163.4 mpm

Working Weight

235,041 lbs

106 612.8 kg

Main Transport Load

119,541 lbs w/ tracks

54 222.9 kg w/ tracks

Documents
Download Brochure
Download Technical Data

Imperial Metric

238 HSL
Lattice Crawler Cranes

Base Rating

150 USt @ 14 ft

136 mt @ 4.3 m

Boom Lengths

50 ft – 260 ft

15.2 m – 79.2 m

Fixed Jib Lengths

30 – 80 ft

9.1 m – 24.4 m

Fixed Jib Offsets

5°, 15°, & 25°

Maximum Combination (Fixed Jib)

Tube: 230 ft + 80 ft

Tube: 70.1 m + 24.4 m

Maximum Tip Height (Fixed Jib)

314.2 ft

95.8 m

Engine Make & Model

Cummins QSB6.7 Tier 4 Final

Maximum Hoist Line Pull / Speed

46,924 lbs / 502 fpm

21 284.4 kg / 153 mpm

Working Weight

262,677 lbs

119 148.3 kg

Main Transport Load

87,000 lbs w/o tracks

39 462.5 kg w/o tracks

Documents
Download Brochure
Download Technical Data

Imperial Metric

248 HSL
Lattice Crawler Cranes

Base Rating

200 USt @ 12 ft

181 mt @ 3.7 m

Boom Lengths

55 ft – 285 ft

16.8 m – 86.9 m

Fixed Jib Lengths

30 ft – 100 ft

9.1 m – 30.5 m

Fixed Jib Offsets

5°, 15°, & 25°

Maximum Combination (Fixed Jib)

Tube: 245 ft + 100 ft

Tube: 74.7 m + 30.5 m

Maximum Tip Height (Fixed Jib)

348.4 ft

106.2 m

Engine Make & Model

Cummins QSB6.7 Tier 4 Final

Maximum Hoist Pull / Speed

46,924 lbs / 502 fpm

21 284.4 kg / 153 mpm

Working Weight

349,711 lbs

158 626.2 kg

Main Transport Load

88,300 lbs w/o tracks

40 052.2 kg w/o tracks

Documents
Download Brochure
Download Technical Data

Imperial Metric

248|V
Lattice Crawler Cranes

Base Rating

200 USt

181 mt

Boom Lengths

55 ft – 275 ft

16.8 m – 83.8 m

Fixed Jib Lengths

30 ft – 100 ft

9.1 m – 30.5 m

Maximum Combination (Fixed Jib)

Tube: 235 ft + 100 ft

71.6 m + 30.5 m

Fixed Jib Offsets

5°, 15°, & 25°

Luffer Lengths

85 ft – 185 ft

25.9 m – 56.4 m

Maximum Combination (Luffer)

155 ft + 185 ft

47.2 m + 53.4 m

Engine Make & Model

Cummins QSB6.7 Tier 4 Final/Stage V

Maximum Hoist Line Pull / Speed

46,925 lbs / 533 fpm

21 248 kg / 162.5 mpm

Working Weight

359,286 lbs

162 969 kg

Main Transport Load

90,632 lbs w/ base section

41 111 kg w/ base section

Documents
Download Technical Data

Imperial Metric

298 Series 2
Lattice Crawler Cranes

Base Rating

250 USt @ 15 ft

226.8 mt @ 4.6 m

Boom Lengths

60 ft – 290 ft

18.2 m – 88.4 m

Fixed Jib Lengths

30 ft – 90 ft

9.1 m – 27.4 m

Fixed Jib Offsets

10°, 20°, & 30°

Maximum Combination (Fixed Jib)

Tube: 250 ft + 90 ft

Tube: 61 m + 27.4 m

Luffer Lengths

85 ft – 185 ft

25.9 m – 56.4 m

Maximum Combination (Luffer)

180 ft + 195 ft

54.9 m + 59.4 m

Engine Make & Model

Cummins QSL9 Tier 4 Final

Maximum Hoist Line Pull / Speed

53,306 lbs / 543.4 fpm

24,179 kg / 165.6 m/min

Working Weight

416,538 lbs

188938.4 kg

Main Transport Load

88,440 lbs

40,116 kg

Documents
Download Brochure
Download Technical Data

Imperial Metric

348 Series 2
Lattice Crawler Cranes

Base Rating

300 USt @ 16 ft

272.2 mt

Boom Lengths

70 ft – 300 ft Heavy Duty / 85 ft – 355 ft Long Range

21.3 m – 91.4 m Heavy Duty / 25.9 m – 108.2 m Long Range

Fixed Jib Lengths

40 ft – 140 ft

12.2 m – 42.7 m

Fixed Jib Offsets

5°, 15°, & 30°

Maximum Combination (Fixed Jib)

240 ft + 140 ft Heavy Duty / 295 ft + 140 ft Long Range

73.2 m + 42.7 m Heavy Duty / 89.9 m + 42.7 m Long Range

Luffer Lengths

100 ft – 240 ft

30.5 m – 73.2 m

Maximum Combination (Luffer)

180 ft + 240 ft

54.9 m + 73.2 m

Engine Make & Model

Cummins QSL9 Tier 4 Final

Maximum Hoist Line Pull / Speed

53,306 lbs / 543.4 fpm

24 179.2 kg / 156.9 mpm

Working Weight

516,178 lbs

234 134.4 kg

Main Transport Load

98,200 lbs

44 542.7 kg

Documents
Download Brochure
Download Technical Data

Imperial Metric

LBC1000
Lattice Crawler Cranes

Base Rating

110 USt @ 12.5 ft

100 mt @ 3.8 m

Boom Lengths

39 ft - 196 ft

12 m - 60 m

Engine Make & Model

Isuzu 6HK1 (EU Tier III A)

Horsepower

280 hp

209 kW

Working Weight

114 USt

104 mt

Documents
Download Brochure
Download Technical Data

Imperial Metric

LBC1200
Lattice Crawler Cranes

Base Rating

132 USt @ 16.4 ft

120 mt @ 5 m

Boom Lengths

49 ft - 246 ft

15 m - 75 m

Engine Make & Model

Isuzu 6HK1 (EU Tier III A)

Horsepower

269 hp

201 kW

Working Weight

134 USt

122 mt

Documents
Download Brochure
Download Technical Data

Imperial Metric

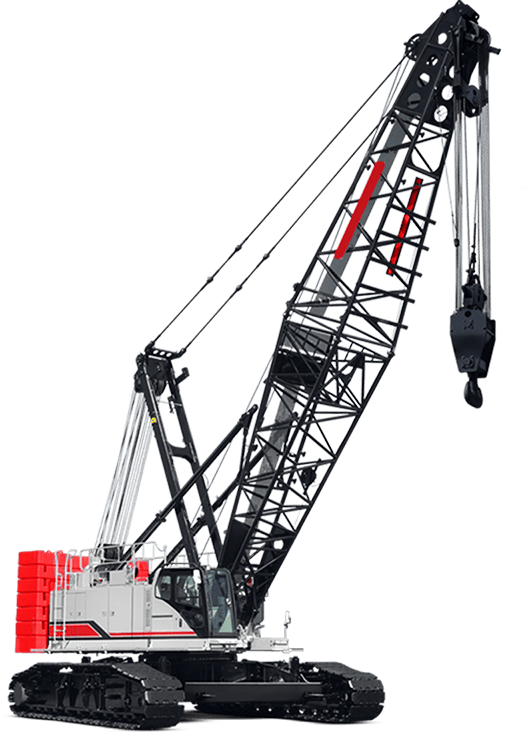

LBC1500
Lattice Crawler Cranes

Base Rating

165 USt @ 14.7 ft

150 mt @ 4.5 m

Boom Lengths

49 ft - 246 ft

15 m - 75 m

Engine Make & Model

Isuzu 6HK1 (EU Tier III A)

Horsepower

269 hp

201 kW

Working Weight

153 USt

139 mt

Documents
Download Brochure
Download Technical Data

Imperial Metric

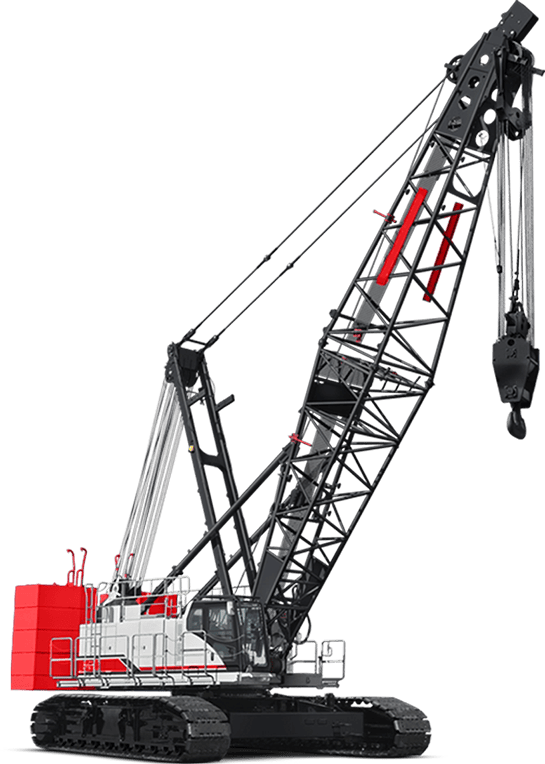

LBC1800
Lattice Crawler Cranes

Base Rating

198 USt @ 13.4 ft

180 mt @ 4.1 m

Boom Lengths

39 ft - 275 ft

12 m - 84 m

Engine Make & Model

Cummins QSB6.7 (EU Tier III A)

Horsepower

280 hp

209 kW

Working Weight

186 USt

169 mt

Documents
Download Brochure
Download Technical Data

Imperial Metric

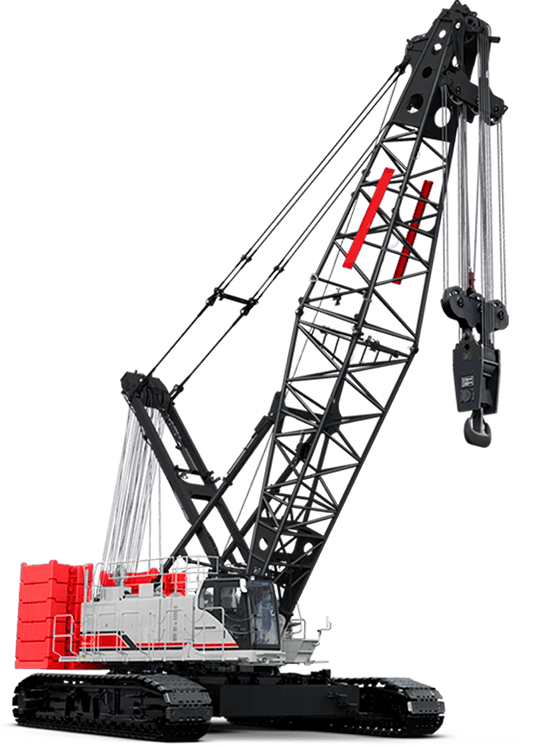

LBC2800
Lattice Crawler Cranes

Base Rating

303 USt @ 14.1 ft

275 mt @ 4.3 m

Boom Lengths

50 ft - 300 ft

15.3 m - 91.5 m

Engine Make & Model

Cummins QSL9 (EU Tier III A)

Horsepower

364 hp

272 kW

Working Weight

254 USt

231 mt

Documents
Download Brochure
Download Technical Data
