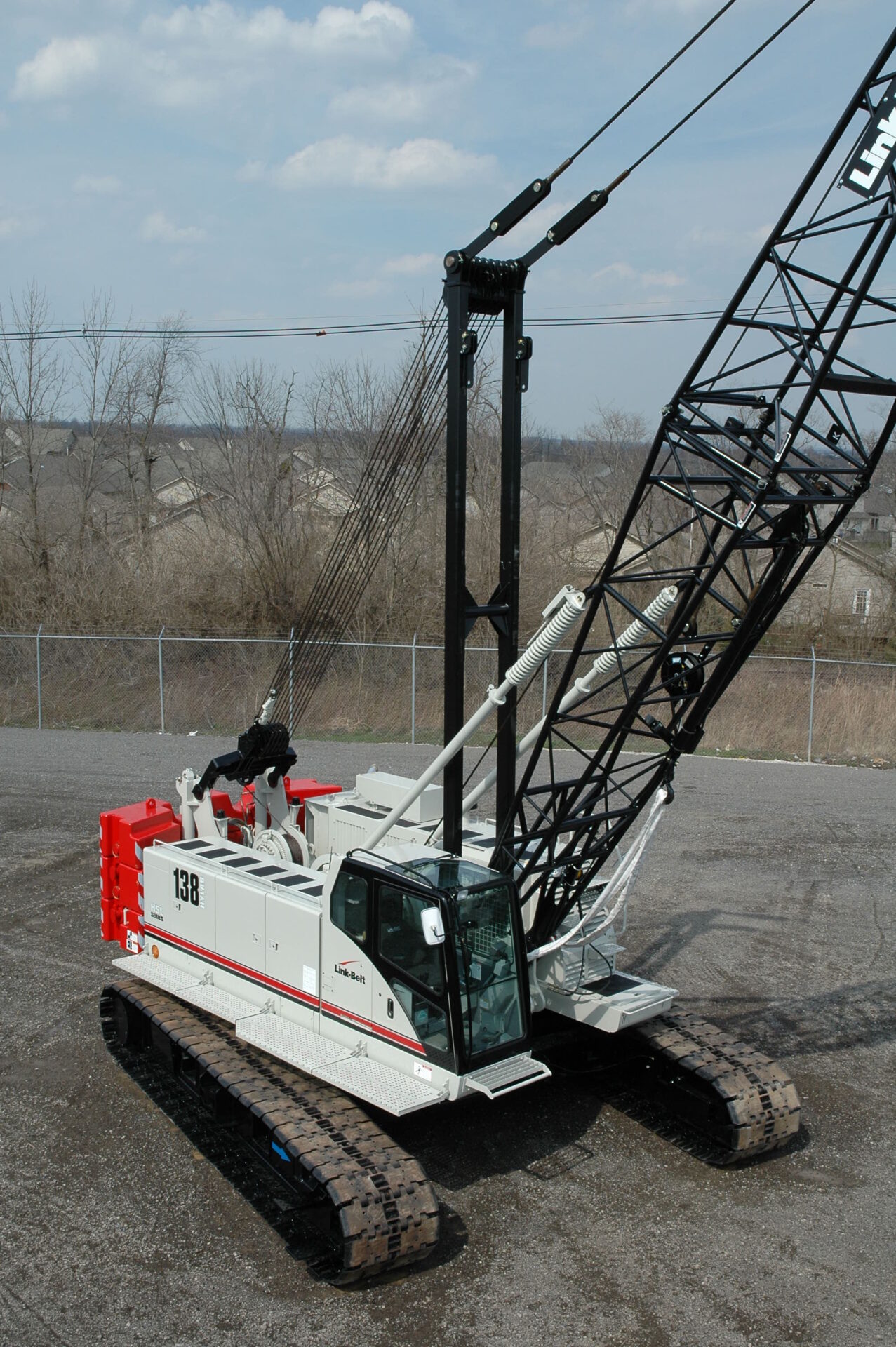

138 HSL
| Base Rating | 80 USt @ 12 ft 80 USt @ 12 ft |
|---|---|
| Boom Lengths | Tube: 40 ft – 200 ft / Angle: 40 ft – 150 ft Tube: 40 ft – 200 ft / Angle: 40 ft – 150 ft |
| Fixed Jib Lengths | 30 ft – 60 ft 30 ft – 60 ft |
| Fixed Jib Offsets | 5°, 15°, & 25° 5°, 15°, & 25° |
| Maximum Tip Height (Fixed Jib) | Tube: 242 ft / Angle: 203 ft Tube: 242 ft / Angle: 203 ft |
| Engine Make & Model | Cummins QSB 6.7 Cummins QSB 6.7 |
| Horsepower | 270 hp 270 hp |
| Maximum Hoist Pull / Speed | 31,182 lbs / 345 fpm 31,182 lbs / 345 fpm |
| Working Weight | 145,403 lbs 145,403 lbs |
| Main Transport Load | 88,121 lbs 88,121 lbs |
All CranesKey Features
- Spacious cab with wide job site view
- Fully adjustable seat and console for operator comfort
- Fully adjustable operation speeds for fast and precise jobs
- Dual throttle with total horsepower control
- Operator limits with function slow down and stop
- Link-Belt Vision Package – Standard
- Full-leveled 360 degree chart pick and carry
- Designed for multifunction under any load conditions
- Auto brake and free swing
- Free fall standard
- Self-assembly
- Transport all overflow loads under 45,000 lbs
- Pin catcher for boom assembly/disassembly
- Angle boom option
