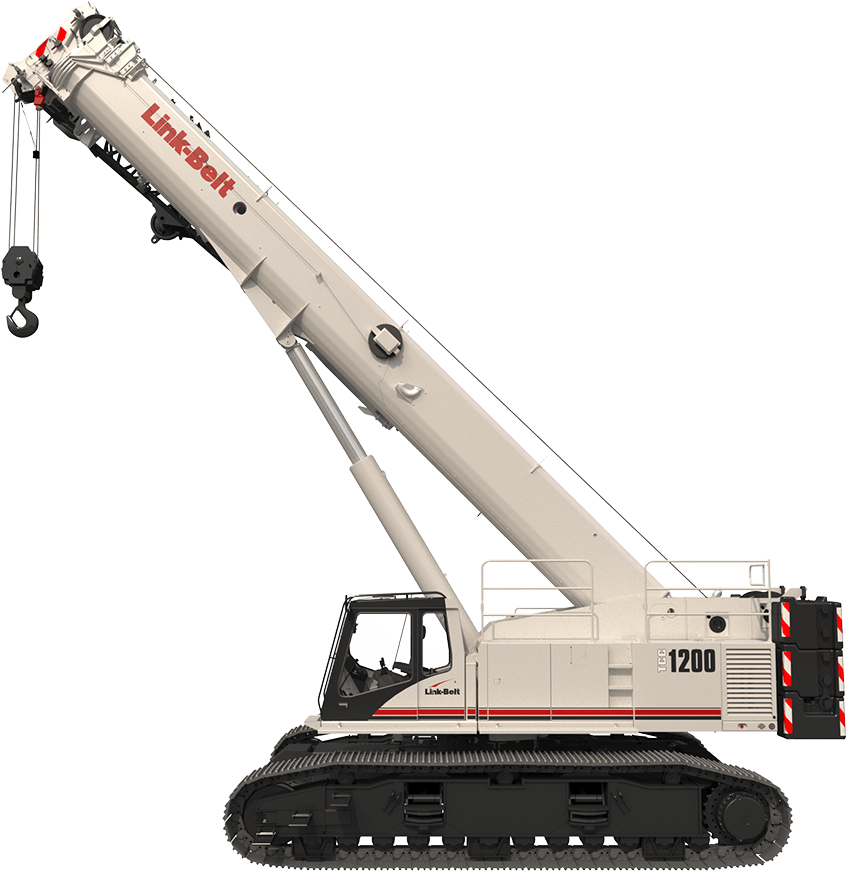

TCC-1200 - Link-Belt Cranes

TCC-1200

Base Rating	120 USt @ 10 ft 110 mt @ 3 m
Main Boom	Five-Section Formed Boom Five-Section Formed Boom
Length (min-max)	40 ft – 150 ft 12.2 m – 45.7 m
Telescope System	Full Power Full Power
Attachment - Option 3	10 ft – 31 ft – 55 ft Bi-Fold Lattice Fly 3 m – 9.4 m – 16.7 m Bi-Fold Lattice Fly
Maximum Tip Height	211 ft 64.3 m
Engine Make & Model	Cummins QSL 9L Cummins QSL 9L
Horsepower	320 (239 kW) 1,800 rpm 320 (239 kW) 1,800 rpm
Maximum Line Pull	21,120 lbs 9 579.9 kg
Maximum Line Speed No Load	537 fpm 163.7 mpm
Standard Upper Weights	51,000 lbs 23 133.2 kg
Standard Lower Weights	25,000 lbs 11 339.81 kg
Main Transport Load	89,000 lbs 40 369.7 kg
Overflow Loads	3 3

Key Features

Variable-displacement piston-type main pumps with total horsepower control
Main hoists powered through piston motors and winch-planetary drums grooved for 7/8 in. (22 mm) wire rope
Three working gauges
Multiple counterweight configurations
Optional three-piece bi-fold fly with integral 10 ft (3.1 m) tip extension — perfect for two-load line picks
Lightweight nylon head sheaves reduce overall machine weight and increase lift capacities
Quick-reeve boom head with quick-reeve block allows rope to be easily reeved over boom head
Hammerhead boom nose allows operator to work at high boom angles
Greaseless wear pads
Optional auxiliary sheave off main boom
Pick and carry the whole chart
List chart selections in LMI
New state-of-the-art load moment indicator
40% gradeability
Transports complete in three or four loads
Main unit transports under 89,000 lbs (40 370 kg) with side frames removed
Three overflow loads under 44,500 lbs (20 185 kg)
Four widespread hydraulic jacks for easy side frame assembly/disassembly
2 mph (3.2 kph) high-speed travel
Fold-up catwalks
