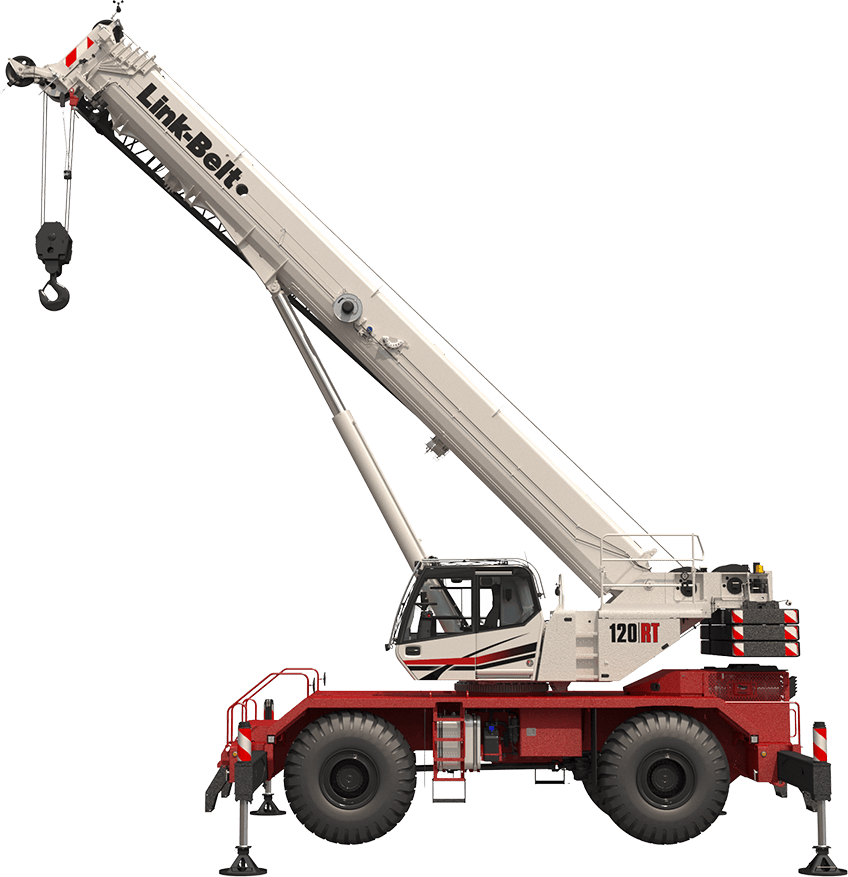

120|RT - Link-Belt Cranes

120|RT

Nominal Capacity @ Radius	120 USt @ 7 ft 110 mt @ 2.1 m
Standard Boom	38.3 ft – 164.1 ft 11.7 m – 50 m
Telescope System	Pin & Latch Pin & Latch
Attachment - Option 1	35 ft – 58 ft Bi-Fold Lattice SmartFly 10.7 m – 17.7 m Bi-Fold Lattice SmartFly
Attachment - Option 2	(1) or (2) 16 ft Lattice Extension(s) (1) or (2) 4.9 m Lattice Extension(s)
Maximum Tip Height	261.7 ft 79.8 m
Maximum Line Pull	23,632 lbs 105.1 kN
Maximum Line Speed	354 fpm 107.9 m/min

Key Features

Greaseless 38.3 ft – 164.1 ft (11.7 m – 50 m) pin and latch six-section boom
Two-piece manual offsetable SmartFly is available with offset positions of 2°, 15°, 30°, and 45° with no capacity deducted for stowed attachment
One or two available lattice inserts to achieve a max tip height of 261.7 ft (79.8 m)
Fully rigged transports under 95,000 lbs (43 092 kg) with counterweights removed and one fall-off load
Ergonomic operator’s cab designed with the operator in mind
Link-Belt Pulse 2.0 load moment indicator display with V-CALC, allowing for virtually limitless outrigger configurations
Full LED lighting with Link-Belt Vision Package – Standard
0° – 20° tilting cab
Steel flat deck design with anti-skid textured paint
Three lockable storage boxes
Six egress points with unbeatable engine access
Four steering modes
Greaseless 4-Link Suspension
Fall arrest anchors
