Reliability, smooth controls, and world-class transport.

ImperialMetric

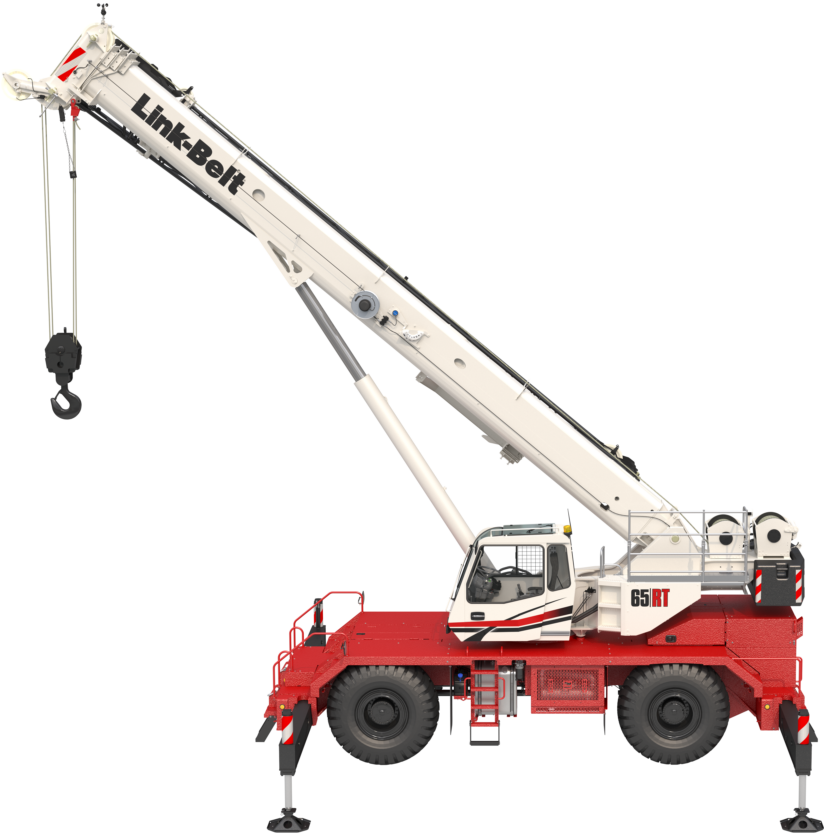

65|RT
Rough Terrain Cranes

Nominal Capacity @ Radius

65 USt @ 9 ft
60 mt @ 2.5 m

Standard Boom

38 ft – 115 ft
11.6 m – 35 m

Telescope System

Full Power
Full Power

Attachment - Option 1

35 ft – 58 ft Bi-Fold Lattice Fly
10.7 m – 17.7 m Bi-Fold Lattice Fly

Attachment - Option 2

(1) or (2) 16 ft Lattice Extension(s)
(1) or (2) 4.9 m Lattice Extension(s)

Maximum Tip Height

211.6 ft
64.5 m

Maximum Line Pull

16,883 lbs
75.1 kN

Maximum Line Speed

459 fpm
139.9 m/min

Documents
Download Brochure
Download Technical Data

ImperialMetric

75|RT
Rough Terrain Cranes

Nominal Capacity @ Radius

75 USt @ 8 ft
70 mt @ 2.5 m

Standard Boom

38 ft – 142 ft
11.6 m – 43.3 m

Telescope System

Full Power
Full Power

Attachment - Option 1

10 ft – 35 ft – 58 ft Bi-Fold Lattice Fly
3 m – 10.7 m – 17.7 m Bi-Fold Lattice Fly

Maximum Tip Height

208.7 ft
63.6 m

Maximum Line Pull

18,603 lbs
82.8 kN

Maximum Line Speed

485 fpm
147.8 m/min

Documents
Download Brochure
Download Technical Data

ImperialMetric

85|RT
Rough Terrain Cranes

Nominal Capacity @ Radius

85 USt @ 8 ft
80 mt @ 2.5 m

Standard Boom

38 ft – 142 ft
11.6 m – 43.3 m

Telescope System

Full Power
Full Power

Attachment - Option 1

35 ft – 58 ft Bi-Fold Lattice SmartFly
10.7 m – 17.7 m Bi-Fold Lattice SmartFly

Maximum Tip Height

209 ft
63.7 m

Maximum Line Pull

18,603 lbs
82.8 kN

Maximum Line Speed

485 fpm
147.8 m/min

Documents
Download Brochure
Download Technical Data

ImperialMetric

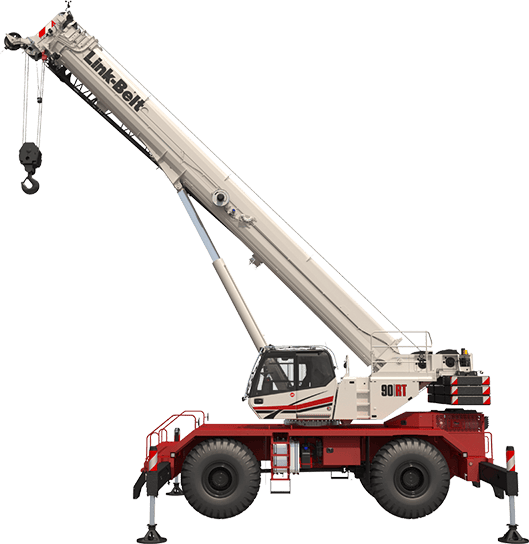

90|RT
Rough Terrain Cranes

Nominal Capacity @ Radius

90 USt @ 8 ft
81 mt @ 2.5 m

Standard Boom

40.6 ft – 155 ft
12.3 m – 47.2 m

Telescope System

Full Power
Full Power

Attachment - Option 1

35 ft – 58 ft Bi-Fold Lattice SmartFly
10.7 m – 17.7 m Bi-Fold Lattice SmartFly

Attachment - Option 2

(1) 16 ft Lattice Extension
(1) 4.9 m Lattice Extension

Maximum Tip Height

237 ft
72.2 m

Maximum Line Pull

23,632 lbs
105.1 kN

Maximum Line Speed

354 fpm
107.9 m/min
ImperialMetric

100|RT
Rough Terrain Cranes

Nominal Capacity @ Radius

100 USt @ 8 ft
90 mt @ 2.5 m

Standard Boom

40.6 ft – 155 ft
12.3 m – 47.2 m

Telescope System

Full Power
Full Power

Attachment - Option 1

35 ft – 58 ft Bi-Fold Lattice SmartFly
10.7 m – 17.7 m Bi-Fold Lattice SmartFly

Attachment - Option 2

(1) 16 ft Lattice Extension
(1) 4.9 m Lattice Extension

Maximum Tip Height

237 ft
72.3 m

Maximum Line Pull

23,632 lbs
105.1 kN

Maximum Line Speed

354 fpm
107.9 m/min

Documents
Download Brochure
Download Technical Data

ImperialMetric

120|RT
Rough Terrain Cranes

Nominal Capacity @ Radius

120 USt @ 7 ft
110 mt @ 2.1 m

Standard Boom

38.3 ft – 164.1 ft
11.7 m – 50 m

Telescope System

Pin & Latch
Pin & Latch

Attachment - Option 1

35 ft – 58 ft Bi-Fold Lattice SmartFly
10.7 m – 17.7 m Bi-Fold Lattice SmartFly

Attachment - Option 2

(1) or (2) 16 ft Lattice Extension(s)
(1) or (2) 4.9 m Lattice Extension(s)

Maximum Tip Height

261.7 ft
79.8 m

Maximum Line Pull

23,632 lbs
105.1 kN

Maximum Line Speed

354 fpm
107.9 m/min

Documents
Download Brochure
Download Technical Data

ImperialMetric

RTC-80130 SII
Rough Terrain Cranes

Nominal Capacity @ Radius

130 USt @ 9 ft
120 mt @ 2.5 m

Standard Boom

41.4 ft – 162 ft
12.6 m – 49.3 m

Telescope System

Pin & Latch
Pin & Latch

Attachment - Option 1

10 ft – 31 ft – 55 ft Bi-Fold Lattice Fly
3 m – 9.4 m – 16.8 m Bi-Fold Lattice Fly

Attachment - Option 2

(1), (2), or (3) 18 ft Lattice Extension(s)
(1), (2), or (3) 5.5 m Lattice Extension(s)

Maximum Tip Height

278 ft
84.7 m

Maximum Line Pull

25,955 lbs
115.5 kN

Maximum Line Speed

431 fpm
131.4 m/min

Documents
Download Brochure
Download Technical Data

ImperialMetric

RTC-80160 SII
Rough Terrain Cranes

Nominal Capacity @ Radius

160 USt @ 7 ft
145 mt @ 2.5 m

Standard Boom

42.3 ft – 195.3 ft
12.9 m – 59.5 m

Telescope System

Pin & Latch
Pin & Latch

Attachment - Option 1

10 ft – 31 ft – 55 ft Bi-Fold Lattice Fly
3 m – 9.4 m – 16.8 m Bi-Fold Lattice Fly

Attachment - Option 2

(1), (2), or (3) 18 ft Lattice Extension(s)
(1), (2), or (3) 5.5 m Lattice Extension(s)

Maximum Tip Height

311 ft
94.8 m

Maximum Line Pull

25,955 lbs
115.5 kN

Maximum Line Speed

435 fpm
132.9 m/min

Documents
Download Brochure
Download Technical Data
