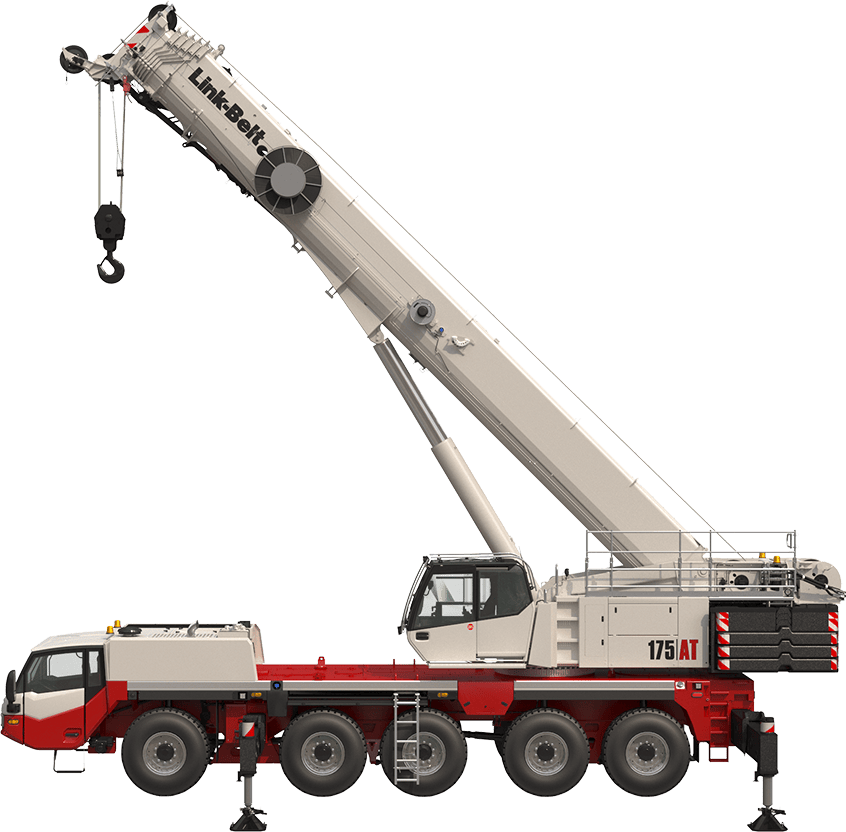

175|AT
Nominal Capacity @ Radius | 175 USt @ 7 ft 150 mt @ 2.1 m |
---|---|
Standard Boom | 42.7 ft – 197.3 ft 13 m – 60.1 m |
Telescope System | Pin & Latch Pin & Latch |
Attachment - Option 1 | 10 ft – 32.5 ft – 55 ft Bi-Fold Lattice Fly 3 m – 9.9 m – 16.8 m Bi-Fold Lattice Fly |
Attachment - Option 2 | (1), (2), or (3) 18 ft Lattice Extension(s) (1), (2), or (3) 5.5 m Lattice Extension(s) |
Maximum Tip Height | 315.1 ft 96.1 m |
Maximum Line Pull | 23,622 lbs 105.1 kN |
Maximum Speed | 397 fpm 121 m/min |
Key Features
- Greaseless 42.7 ft – 197.3 ft pin and latch six-section boom
- Three-piece (10 ft – 32.5 ft – 55 ft) fly with integrated heavy-lift section: manual OR hydraulic offset options
- One, two, or three available lattice inserts to achieve max tip height of 315.1 ft
- Full three-piece fly is stowable on the machine, and no capacity deducts for stowed attachment
- Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
- Modular counterweight designed for maximizing transport efficiency — two overflow loads for max counterweights
- Cummins QSX15 Engine: T4F/Stage V Compliant Off-Highway 548 HP Engine
- ZF TraXon (no clutch pedal) Manual Transmission
- Link-Belt Pulse 2.0 total crane operating system, including 81-position V-CALC-individual outrigger extension system
- NEW: SmartStack counterweight monitoring system
- Link-Belt Vision Package & full LED lighting package – Standard
- All new carrier cab: Dual-occupant, European-style AT cab
- TPMS: Wireless Tire Pressure and Temperature Monitoring
- Flat deck design — maintains four points of access regardless of upper position
