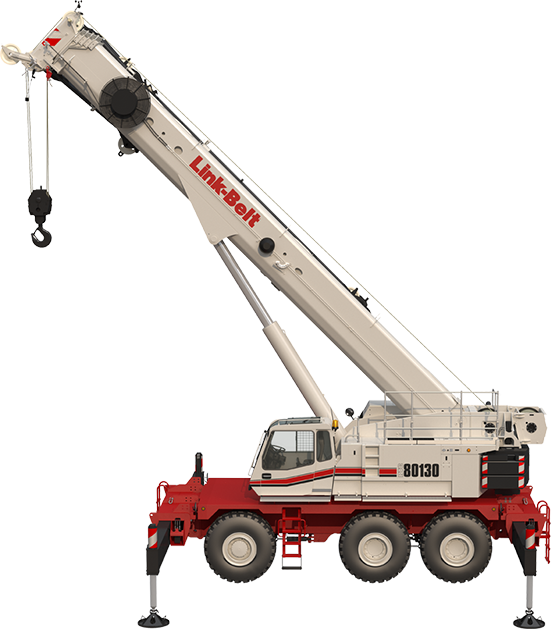

RTC-80130 SII
Nominal Capacity @ Radius | 130 US Tons @ 9 ft 120 Mt @ 2.74 m |
---|---|
Standard Boom | 41.4 - 162 ft 12.6 - 49.3 m |
Telescope System | Pin & Latching Pin & Latching |
Attachment - Option 1 | 10 - 31 - 55 ft Bi-Fold 3 - 9.4 - 16.8 m Bi-Fold |
Attachment - Option 2 | (1) or (2) or (3) 18 ft Lattice Extensions (1) or (2) or (3) 5.5 m Lattice Extensions |
Maximum Tip Height | 278 ft 84.7 m |
Maximum Line Pull | 25,955 lbs 115.45 kN |
Maximum Speed | 431 fpm 131.4 m/min |
Key Features
- Full power latching style boom with market leading capacity for its class
- Innovative 10 ft (3.0m) fly is integral to one of the on-board fly options
- Over 20 tons (18.1mt) capacity and one-load two-line lift procedures
- Counterweight consists of modular-style counterweights for multiple transport and lift scenarios
- Boom wear pads have Teflon pucks that lubricate the boom sections (No grease)
- Four fly options feature four offset positions of 2°, 15°, 30°, and 45°
- Next generation operator’s cab with improved visibility and ergonomics
- Integral air conditioning – optional
- Proven six-wheel hydrostatic drive with fully independent hydraulic suspension
- 4-mode steering controlled from the steering wheel
- Full-length flat deck with integrated steps and handholds
- Large swing out engine hood doors for ease of service
- Access ladders and folding guardrails
