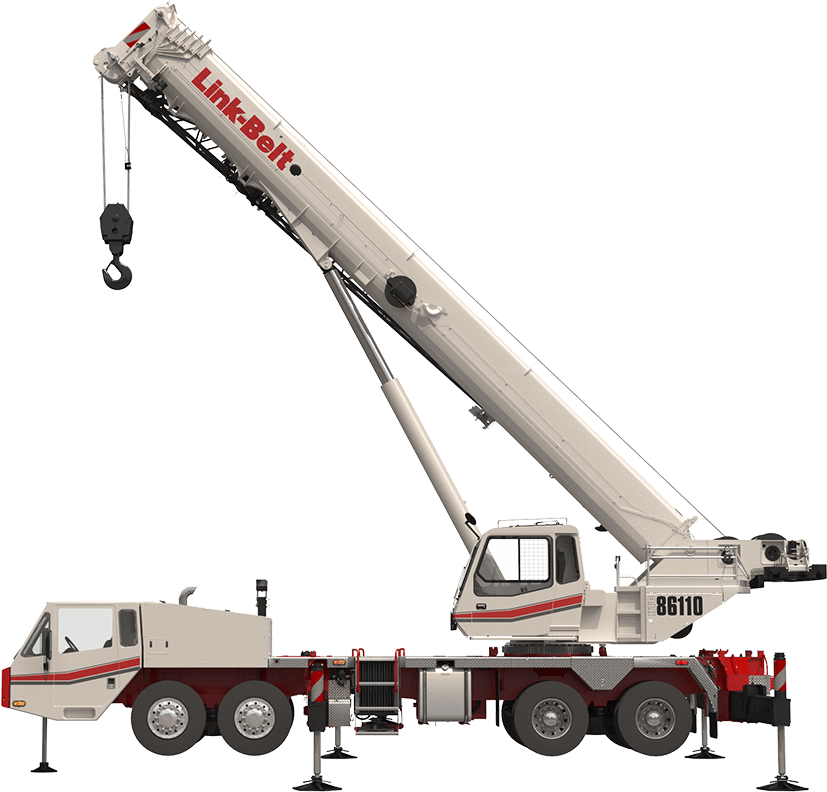

HTC-86110 - Link-Belt Cranes

HTC-86110

Nominal Capacity @ Radius	110 USt @ 7 ft 100 mt @ 2.1 m
Standard Boom	38.3 ft – 164.1 ft 11.7 m – 50 m
Telescope System	Pin & Latch Pin & Latch
Attachment - Option 1	A: 35 ft Bi-Fold Lattice Fly / B: 10 ft – 35 ft – 58 ft Bi-Fold Lattice Fly A: 10.7 m Bi-Fold Lattice Fly / B: 3 m – 10.7 m – 17.7 m Bi-Fold Lattice Fly
Attachment - Option 2	(1) or (2) 16 ft insert(s) (1) or (2) 4.9 m insert(s)
Maximum Tip Height	262 ft 79.7 m
Maximum Line Pull	20,739 lbs 92.3 kN
Maximum Speed	495 fpm 150.9 m/min

View Larger

Brochure

Technical Data

All Cranes Telescopic Truck Cranes

Key Features

Greaseless 38.3 ft – 164.1 ft pin and latch six-section boom
Manually offsetable one-, two-, or three-piece fly: offsetable to 0°, 15°, 30°, and 45°
One or two available lattice extensions to reach max tip height of 262 ft
Full three-piece fly is stowable on the machine, and no capacity deducts for stowed attachment
Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
Transports under 105,000 lbs with 16,000 lbs of counterweight, three-piece fly, and 10-t ball installed
“Stow ‘n go” outrigger pontoons are easily secured for transport
Cummins X12: EPA 2022 Compliant On-Highway 455 HP Engine
ZF TraXon (no clutch pedal) Manual Transmission
Link-Belt Pulse operating system, including CALC-selectable outrigger extension system
Link-Belt Vision Package – Standard
Flat deck design — maintains four points of access regardless of upper position
Pull-out CabWalk for ease of access to and from the operator’s cab

Frequently Asked Questions

What boom configurations are available for the HTC-86110?GRIFFIN FLETCHER2026-06-22T13:49:45-05:00

What boom configurations are available for the HTC-86110?

The HTC-86110 features a 164-foot main boom, with an available 58-foot on-board fly that includes four offset positions of 2, 15, 30, and 45 degrees. The fly also features an integrated 10-foot fly that reeves up four parts of line.

How is the HTC-86110 optimized to operate at night?GRIFFIN FLETCHER2026-06-22T13:48:56-05:00

How is the HTC-86110 optimized to operate at night?

The HTC-86110 features a lighting package with four high-intensity work lights mounted on top of the operator’s cab, the right side of the superstructure facing forward, on the upper work platform, and on the left side of the superstructure facing out. Single and dual boom floodlights are available, as well, and remote control floodlights work in conjunction with other floodlight options.
