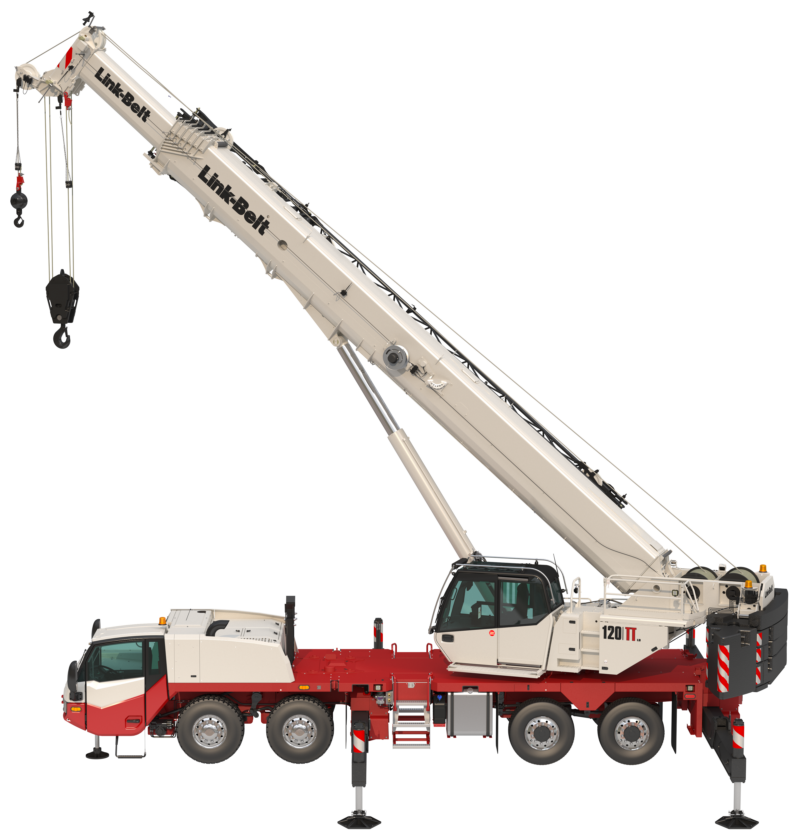

120|TTLB - Link-Belt Cranes

120|TTLB

Nominal Capacity @ Radius	120 USt @ 7 ft 110 mt @ 2.1 m
Standard Boom	39.8 ft – 196.9 ft 12.1 m – 60 m
Telescope System	Pin & Latch Pin & Latch
Attachment - Option 1	A: 35 ft Bi-Fold Lattice Fly/ B: 9.5 ft – 35 ft – 58 ft Bi-Fold Lattice Fly A: 10.7 m Bi-Fold Lattice Fly / B: 3 m – 10.7 m – 17.7 m Bi-Fold Lattice Fly
Maximum Tip Height	263 ft 80.1 m
Maximum Line Pull	23,632 lbs 105.1 kN
Maximum Speed	354 fpm 107.9 m/min

View Larger

Brochure

Technical Data

All Cranes Truck Terrain Cranes

Key Features

Greaseless 39.3 ft – 196.9 ft pin and latch six-section boom
Link-Belt SmartFly: different configurations to address any job site need
NEW for the 120|HT: three-piece (9.5 ft – 35 ft – 58 ft) fly with integrated heavy-lift section: offsetable to 0°, 15°, 30°, and 45°
One or two available lattice extensions to reach max tip height of 263 ft
Full three-piece fly is stowable on the machine, and no capacity deducts for stowed attachment
Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
Steerable rear axles — simple control switch in the carrier cab
Greatly reduced turning radius during travel
Front and rear tires and wheels are interchangeable
Industry-first suspension and axle design: independent air ride suspension and air disc brakes
Highest gross axle rating (51,200 lbs on front tandem) of any other truck crane in the market
Transports at 110,000 lbs with 20,000 lbs of counterweight, three-piece fly, 60-t block, and 10-t ball installed
Cummins X12 Engine: EPA 2022 Compliant On-Highway 455 HP Engine
ZF TraXon (no clutch pedal) Manual Transmission
Link-Belt Pulse 2.0 operating system, including 81-position V-CALC-individual outrigger extension system
Link-Belt Vision Package & full LED lighting package – Standard
All new carrier cab: NEW wider carrier cab — nine inches wider than previous generation of truck crane cab
TPMS: Wireless Tire Pressure and Temperature Monitoring
SmartStack counterweight monitoring system
Flat deck design — maintains four points of access regardless of upper position

Frequently Asked Questions

What else can you tell me about the 120|TTLB?GRIFFIN FLETCHER2026-06-22T14:05:03-05:00

What else can you tell me about the 120|TTLB?

The 120|TTLB comes with an air-ride suspension design and air disc brakes on a rear-steer truck crane for advanced braking performance. For added engine performance and fuel economy, the 120|TTLB is powered by a Cummins 445-horsepower EPA emissions compliant X12 Series engine.
