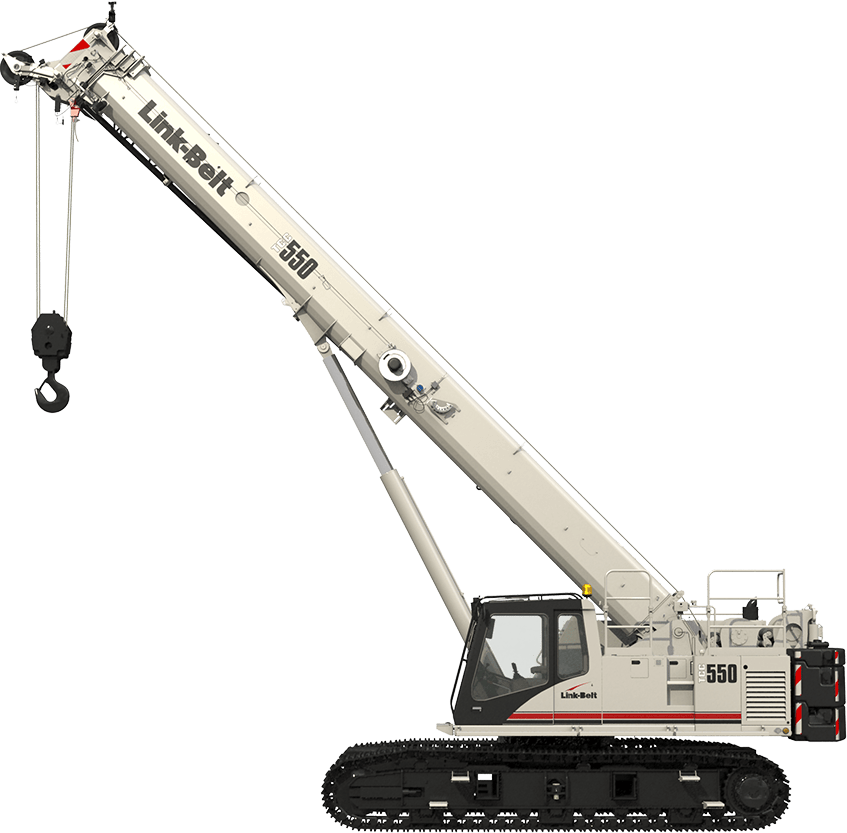

TCC-550
Base Rating | 55 USt @ 9 ft 51 Mt @ 3 m |
---|---|
Main Boom | Four Section Formed Boom Four Section Formed Boom |
Length (min-max) | 36'-115' 11.2 - 35.1 m |
Telescope System | Full Power Full Power |
Attachment - Option 3 | N/A N/A |
Maximum Tip Height | 170 ft 51.9 m |
Engine Make & Model | Cummins QSB 6.7L Cummins QSB 6.7L |
Horsepower | 215 hp (160kW) @ 1,800 rpm 215 hp (160kW) @ 1,800 rpm |
Maximum Line Pull | 17,084 lbs 7,749.1 kg) |
Maximum Speed | 549 fpm 167.5 mpm |
Standard Upper Weights | 25,000 lbs 11,340 kg |
Standard Lower Weights | N/A N/A |
Main Transport Load | 99,850 lbs 45,291 kg |
Overflow Loads | 1 for XL Ctwt package 1 for XL Ctwt package |
Key Features
- Full-power 36.5 – 115 ft (11 – 35 m) four-section boom with two boom extend modes (EM1, EM2)
- Greaseless boom includes Link-Belt’s proven Teflon-impregnated wear pads for easy maintenance
- Durable textured and slip-resistant paint on all walking surfaces is new and improves footing
- Vision Package includes winch-view camera, rear-view camera and right-side swing camera

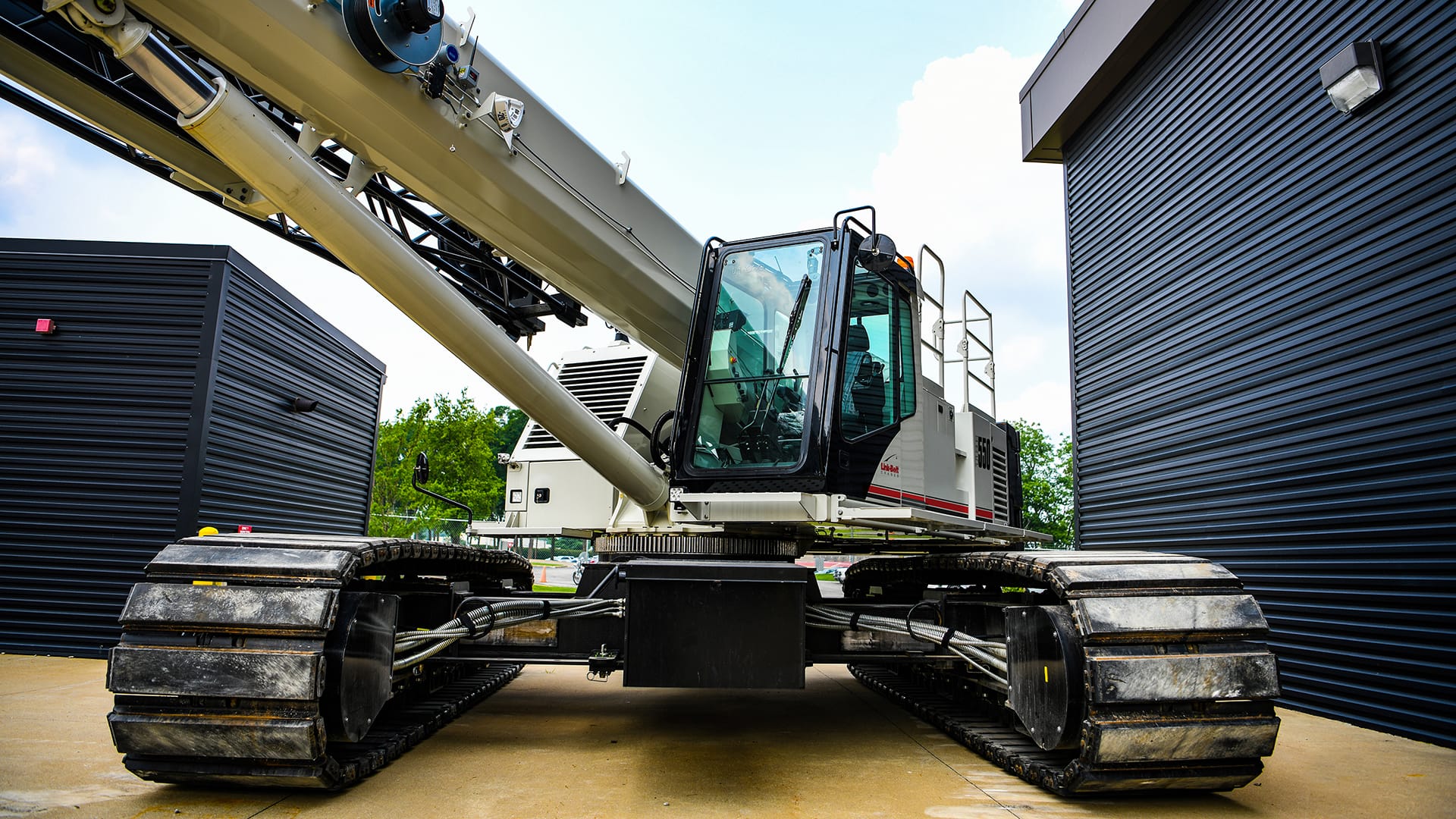

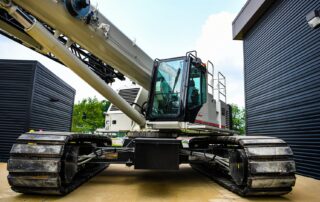

- Three track widths: 15 ft 2.37 in (4.63m) fully extended, 13 ft 6.11 in (4.12 m) intermediate, and 11 ft 5.24 in (3.49m) retracted

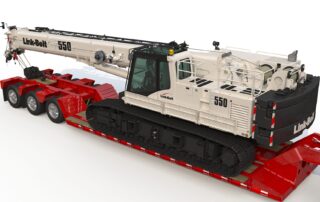

- Transports in just one load while staying under 100,000 lbs (45 359.2 kg)

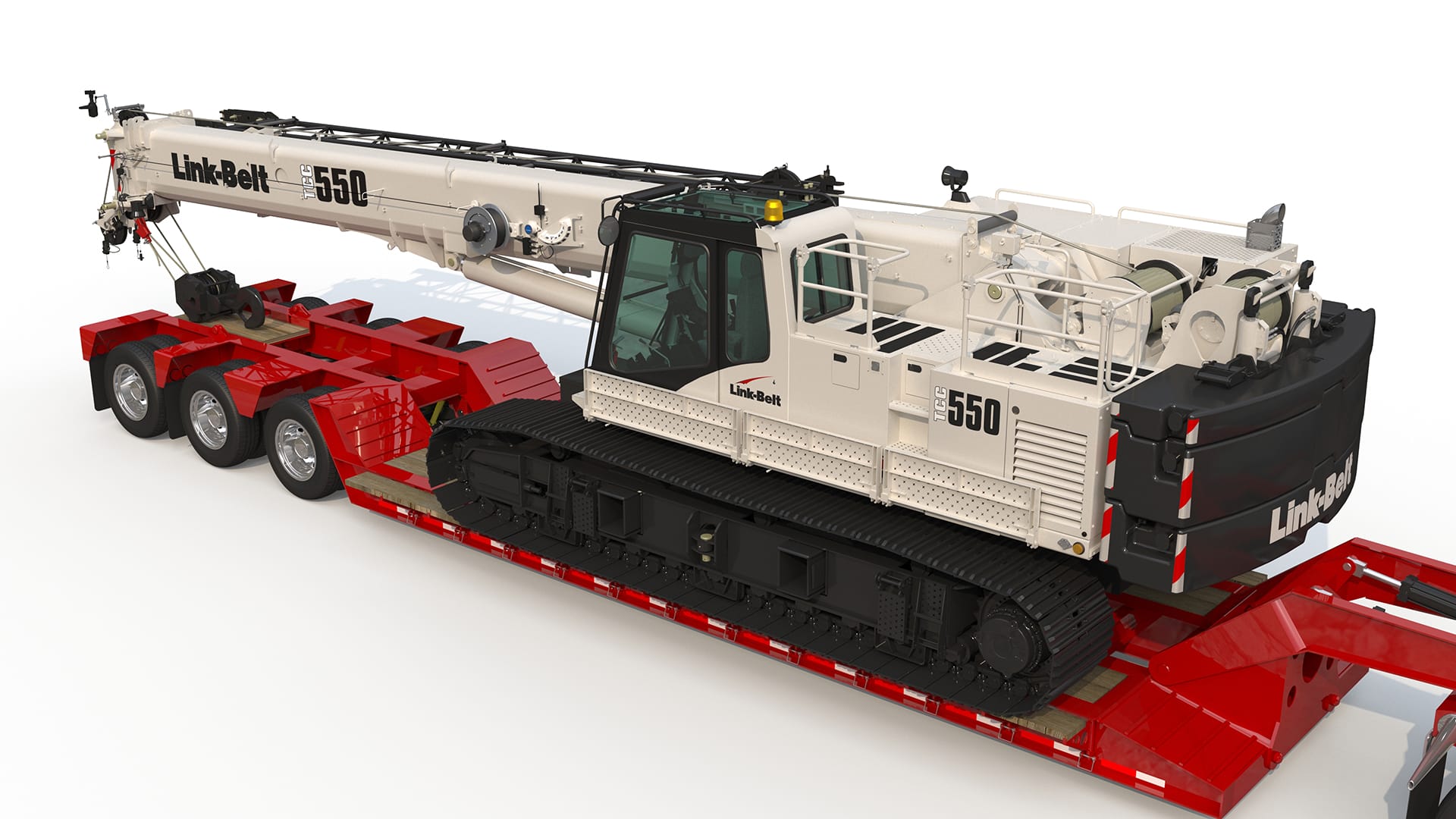

- On the trailer, the TCC-550 travels at a height of 9 ft 10.55 in (3.01 m) and a width of 11 ft 5.24 in (3.49 m)
