228 HSL - Link-Belt Cranes

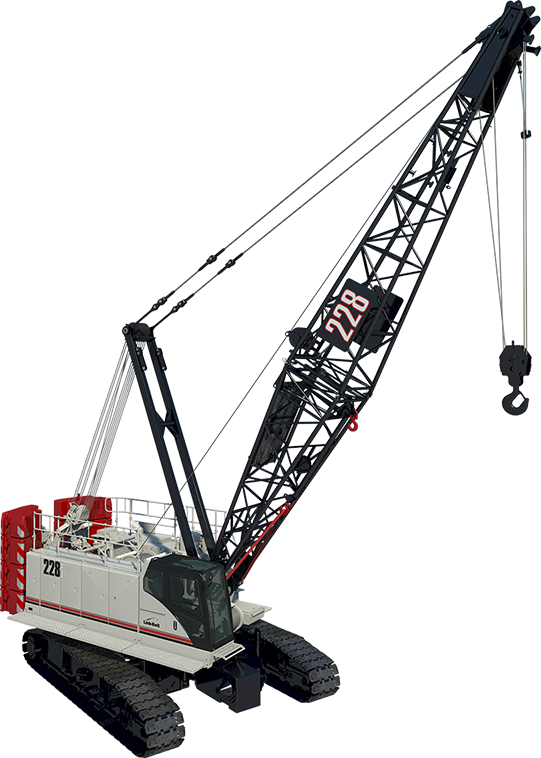

228 HSL

Base Rating	130 USt @ 12 ft 118 mt @ 3.7 m
Boom Lengths	Tube: 45 ft – 235 ft Tube: 13.7 m – 71.6 m
Boom Lengths	Angle: 45 ft – 155 ft Angle: 13.7 m – 47.2 m
Fixed Jib Lengths	Tube: 30 ft – 75 ft Tube: 9.1 m – 22.9 m
Fixed Jib Offsets	5°, 15°, & 25° 5°, 15°, & 25°
Maximum Combination (Fixed Jib)	Tube: 205 ft + 75 ft Tube: 62.5 m + 22.9 m
Maximum Tip Height (Fixed Jib)	281.8 ft 86.6 m
Engine Make & Model	Cummins QSB6.7 Tier 4 Final Cummins QSB6.7 Tier 4 Final
Maximum Hoist Line Pull / Speed	44,565 lbs / 536 fpm 20 214.3 kg / 163.4 mpm
Working Weight	235,041 lbs 106 612.8 kg
Main Transport Load	119,541 lbs w/ tracks 54 222.9 kg w/ tracks

View Larger

Brochure

Technical Data

All Cranes Lattice Crawler Cranes

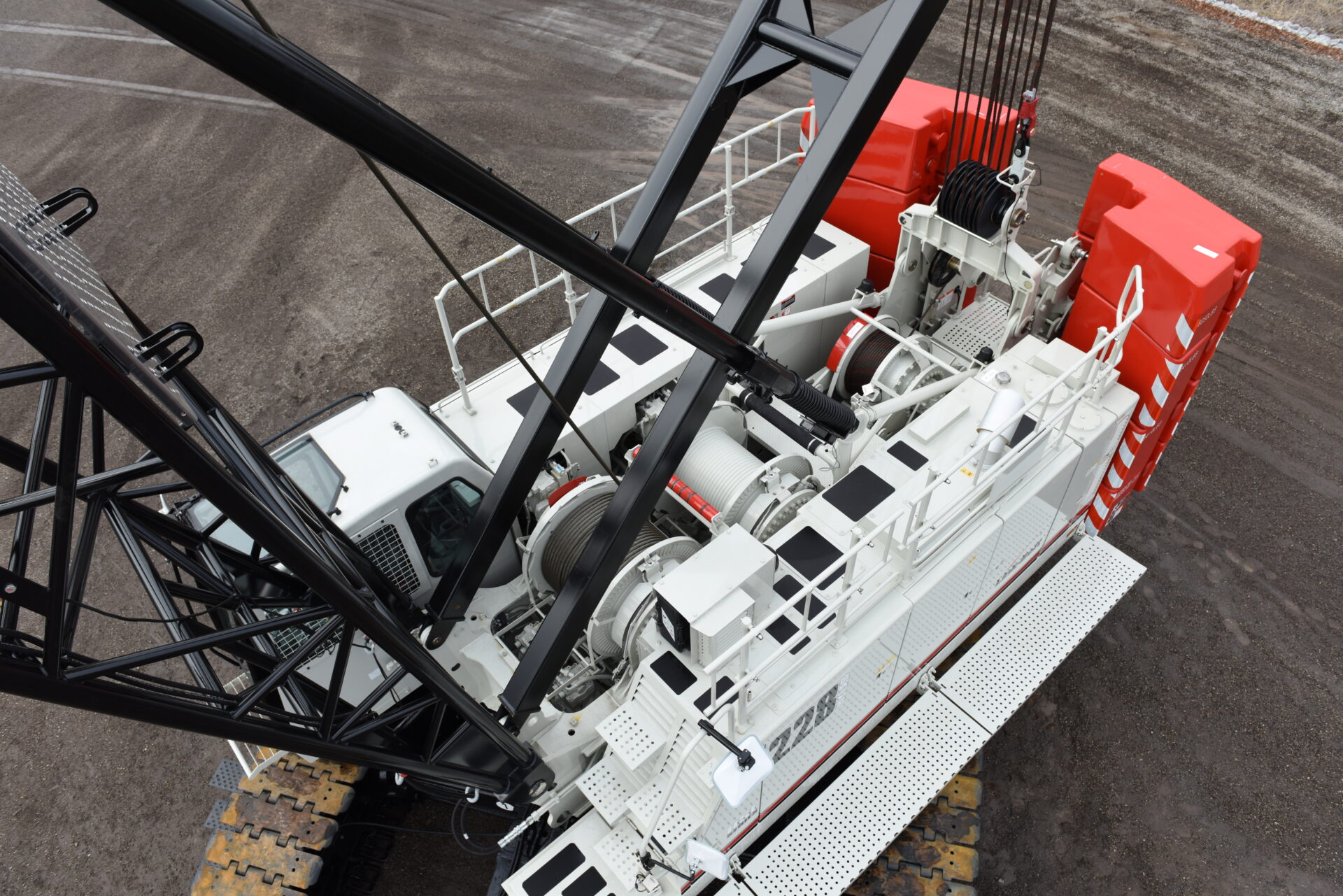

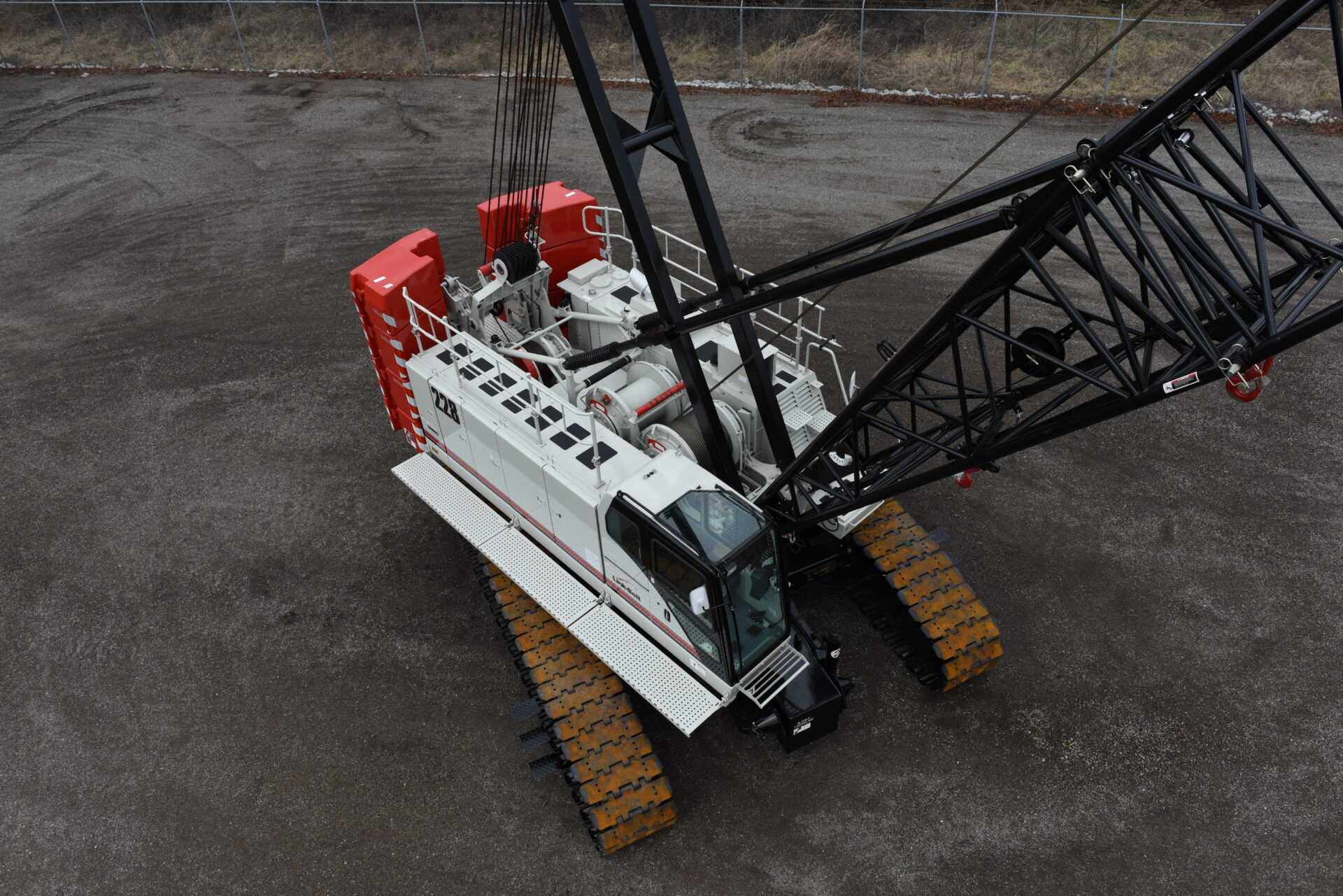

Key Features

Spacious, air-conditioned cab featuring wide job site views
Fully adjustable seat and console for operator comfort
Operator-settable working range restrictions with function slow down/stop
Link-Belt’s Vision Package standard with rear, winch, and swing cameras
Dual throttle for engine speed and pump flow
Cummins engine, compatible with HVO fuel
Designed for multifunction under any load condition
Fine-tuning dials for function speeds
Standard auto brake and free swing functions
Standard Winch Package with wet brakes and free fall
Full self-assembly – No assist crane required
Heavy-duty undercarriage designed for durability and longevity
Pick and carry all 360° capacities on level ground
iCraneTrax telematics equipped
Wire rope pendants store on top of boom sections
All boom sections feature double-tapered connection pins with pin catcher storage brackets
All overflow loads transport under 45,000 pounds (20 411 kilograms)

Media

Frequently Asked Questions

What is unique about HSL Series cabs?GRIFFIN FLETCHER2026-10-12T09:11:04-05:00

What is unique about HSL Series cabs?

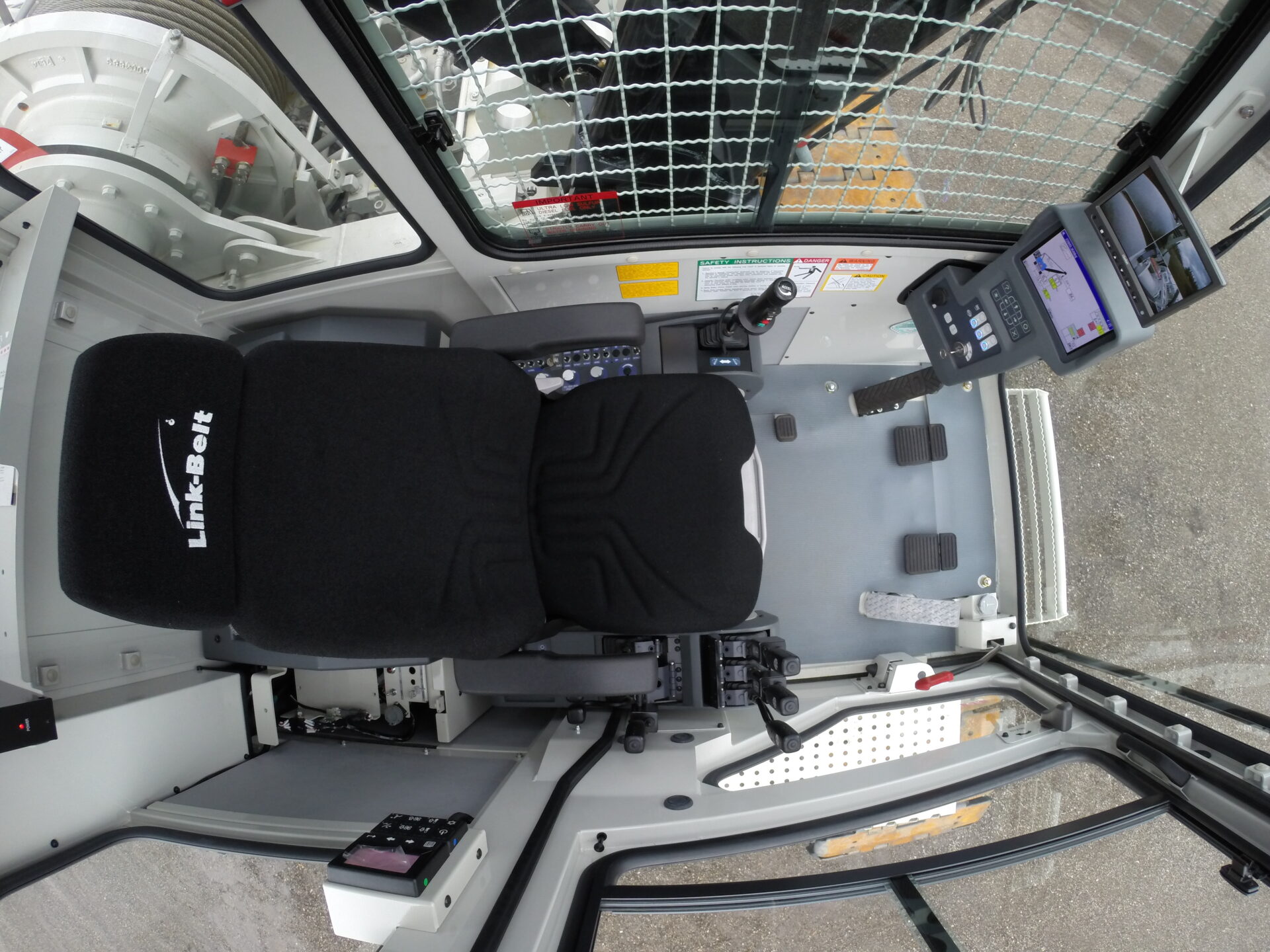

The HSL Series cab is designed with operator comfort and productivity in mind. Its spacious layout, ergonomically positioned pilot-pressured controls, and intuitive HSL-1 display allow operators to easily customize hydraulic functions to their preferences. Large windows provide excellent visibility, giving operators a clear view of the job site.

What boom lengths does the 228 HSL offer?GRIFFIN FLETCHER2026-10-07T10:38:48-05:00

What boom lengths does the 228 HSL offer?

The 228 HSL offers maximum boom lengths with two different styles of boom: tubular boom (up to 235 feet) and angle boom (up to 155 feet). A fixed jib, with lengths of 30–75 feet in 15 foot sections, is available.

Can you explain more about the 228 HSL’s “Eco Winch” feature?GRIFFIN FLETCHER2026-06-24T09:23:55-05:00

Can you explain more about the 228 HSL’s “Eco Winch” feature?

Link-Belt’s “Eco Winch” is an additional fuel-saving feature that allows for maximum line speeds when hoisting light loads at idle engine speeds, resulting in greater fuel efficiency, lower operating cost, less engine RPMs under load, and fewer emissions.

How many truck loads does it take to transport the 228 HSL from job to job?GRIFFIN FLETCHER2026-10-07T10:36:01-05:00

How many truck loads does it take to transport the 228 HSL from job to job?

The main unit with the base section and side frames transports at 119,541 pounds with four overflow loads for 230 feet of tube boom and 75 feet of fixed jib. If the side frames are removed, the main unit will transport at 74,225 pounds. The crane is also capable of self-assembly and disassembly on the job site, reducing the need for assist equipment during setup and teardown.

What models offer an Auxiliary Power Unit (APU), and how can it reduce operating costs?GRIFFIN FLETCHER2026-10-12T09:11:57-05:00

What models offer an Auxiliary Power Unit (APU), and how can it reduce operating costs?

The 218|V, 228 HSL, and 248|V have a Link-Belt-designed APU that allows the main unit’s engine to be off while continuing to power the cab, LML display, Bluetooth radio, heated seat, and all lights while providing climate control. This greatly reduces fuel consumption and engine hours on the main engine. The APU is also available as a retrofit kit for existing 218|V, 218 HSL, 228 HSL, and 248|V cranes.

What currently produced lattice crawler models feature angle boom?GRIFFIN FLETCHER2026-10-07T10:08:58-05:00

What currently produced lattice crawler models feature angle boom?

The 138 HSL and 228 HSL offer angle boom configurations even with their fixed jibs. The angle boom is well suited for rugged job site conditions and duty-cycle work.
