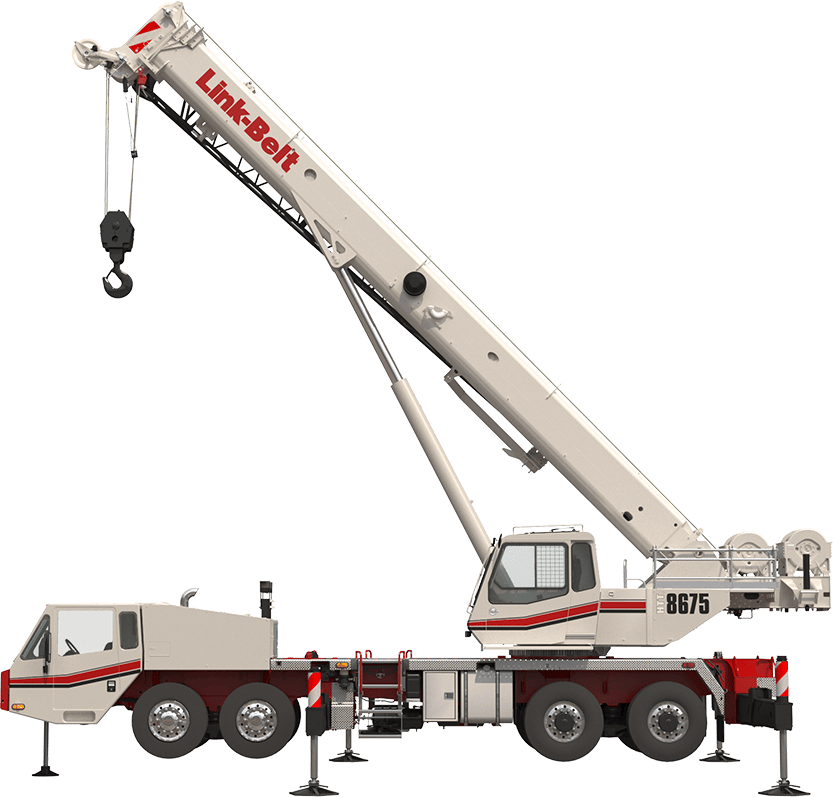

HTT-8675 Series II
Nominal Capacity @ Radius | 75 USt @ 9 ft 65 mt @ 2.7 m |
---|---|
Standard Boom | 41 ft – 127 ft 12.5 m – 38.7 m |
Telescope System | Pin & Latch Pin & Latch |
Attachment - Option 1 | A: 38 ft Bi-Fold Lattice Fly / B: 38 ft – 64 ft Bi-Fold Lattice Fly A: 11.6 m Bi-Fold Lattice Fly / B: 11.6 m – 19.5 m Bi-Fold Lattice Fly |
Attachment - Option 2 | (1) or (2) 16 ft insert(s) (1) or (2) 4.9 m insert(s) |
Maximum Tip Height | 230 ft 70.2 m |
Maximum Line Pull | 12,920 lbs std cable / 22,400 lbs opt cable 57.5 kN std cable / 99.6 kN opt cable |
Maximum Speed | 460 fpm 140.2 m/min |
Key Features
- Greaseless 41 ft – 127 ft pin and latch four-section boom
- Manually offsetable one- or two-piece fly: offsetable to 2°, 15°, 30°, and 45°
- Full fly is stowable on the machine, and no capacity deducts for stowed attachment
- Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
- Steerable rear axles — simple control switch in the carrier cab
- Greatly reduced turning radius during travel
- Front and rear tires and wheels are interchangeable
- Transports under 95,000 lbs with 14,400 lbs of counterweight, fly, and 10-t ball installed
- “Stow ‘n go” outrigger pontoons are easily secured for transport
- Cummins X12: EPA 2022 Compliant On-Highway 450 HP engine
- ZF AS-Tronic (no clutch pedal) Manual Transmission
- Link-Belt Pulse operating system, including CALC-selectable outrigger extension system
- Link-Belt Vision Package – Standard
- Flat deck design — maintains four points of access regardless of upper position
- Pull-out CabWalk for ease of access to and from the operator’s cab
