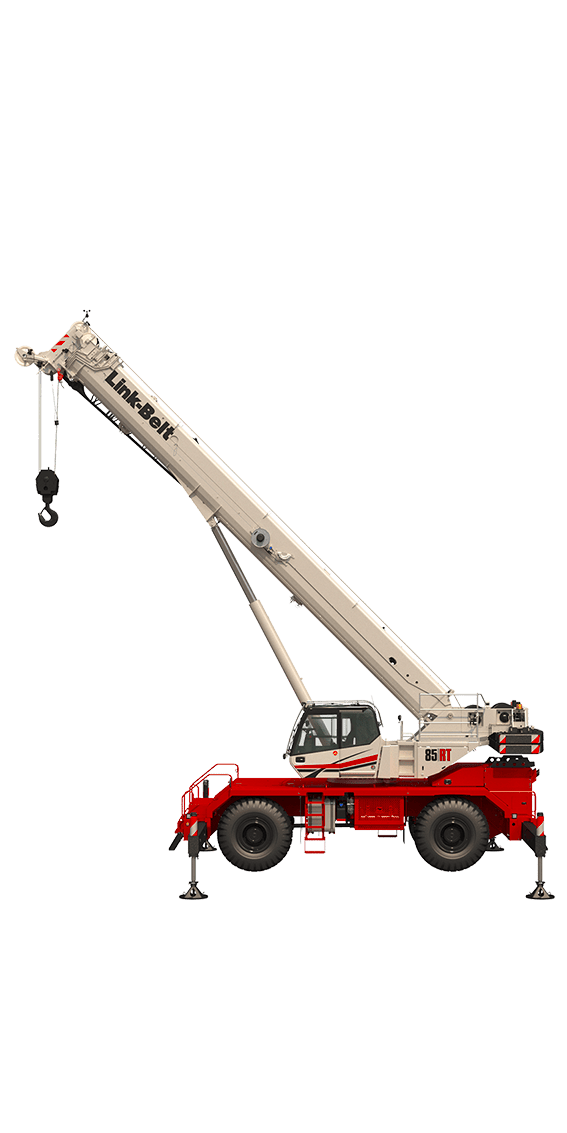

85|RT

Nominal Capacity @ Radius
85 USt @ 8 ft
80 mt @ 2.5 m
Standard Boom
38 ft – 142 ft
11.6 m – 43.3 m
Telescope System
Full Power
Full Power
Attachment - Option 1
35 ft – 58 ft Bi-Fold Lattice SmartFly
10.7 m – 17.7 m Bi-Fold Lattice SmartFly
Maximum Tip Height
209 ft
63.7 m
Maximum Line Pull
18,603 lbs
82.8 kN
Maximum Line Speed
485 fpm
147.8 m/min

Key Features

  • Greaseless 38 ft – 142 ft (11.6 m – 43.3 m) full-power five-section boom
  • Two-piece manual offsetable SmartFly is available with offset positions of 2°, 15°, 30°, and 45° with no capacity deducted for stowed attachment
  • Fully rigged transports under 105,000 lbs (47 627 kg) with counterweights installed
  • Ergonomic operator’s cab designed with the operator in mind
  • Link-Belt Pulse 2.0 load moment indicator display with V-CALC, allowing for virtually limitless outrigger configurations
  • Full LED lighting with Link-Belt Vision Package – Standard
  • 0° – 20° tilting cab
  • Steel flat deck design with anti-skid textured paint
  • Three lockable storage boxes
  • Six egress points with unbeatable engine access
  • Four steering modes
  • Greaseless 4-Link Suspension
  • Fall arrest anchors
