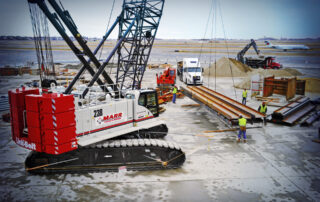

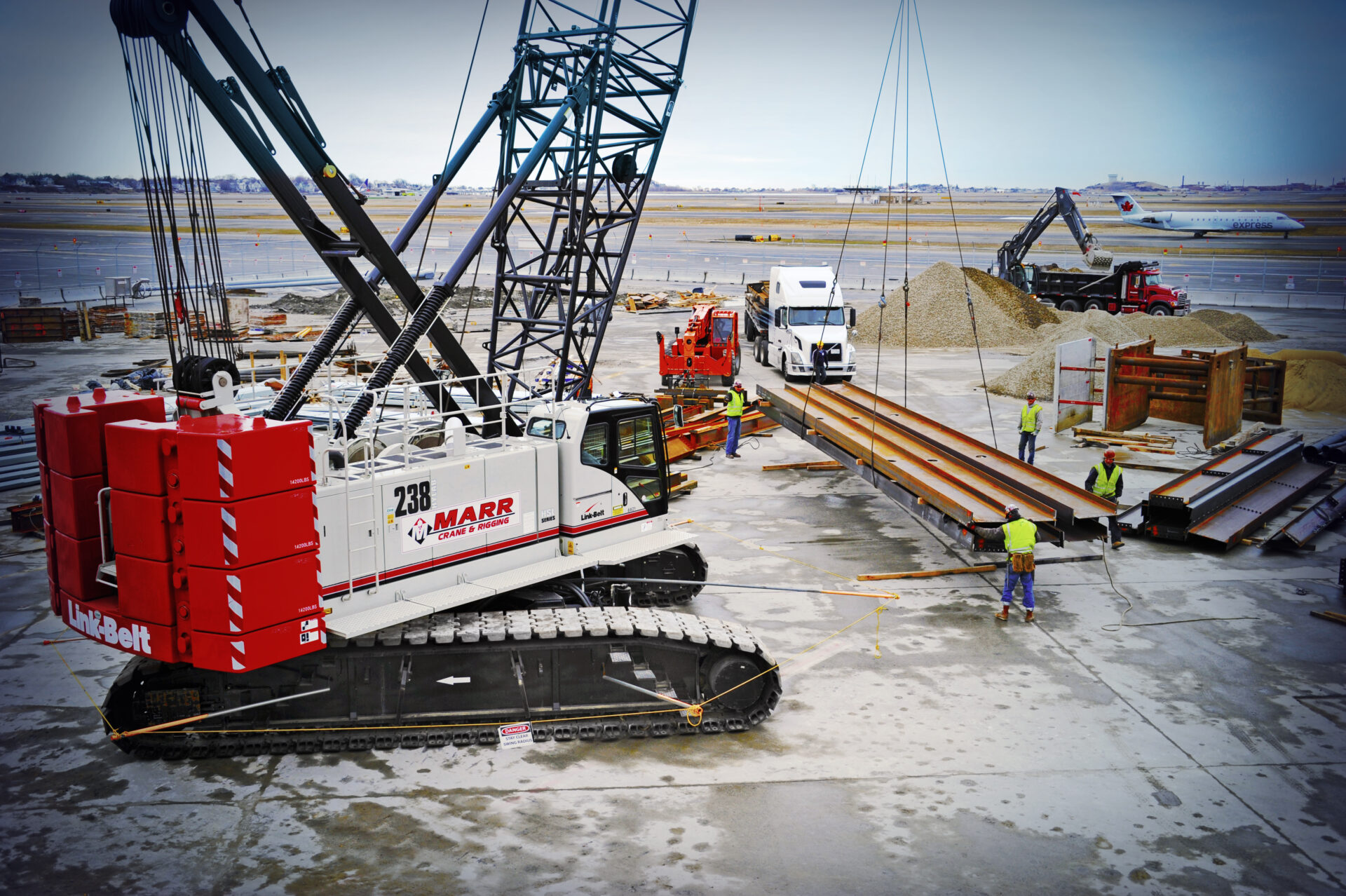

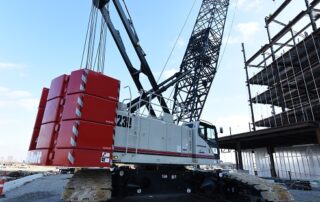

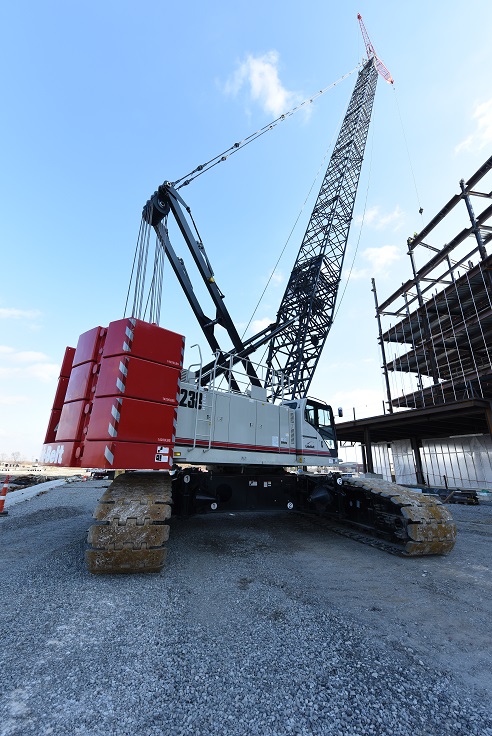

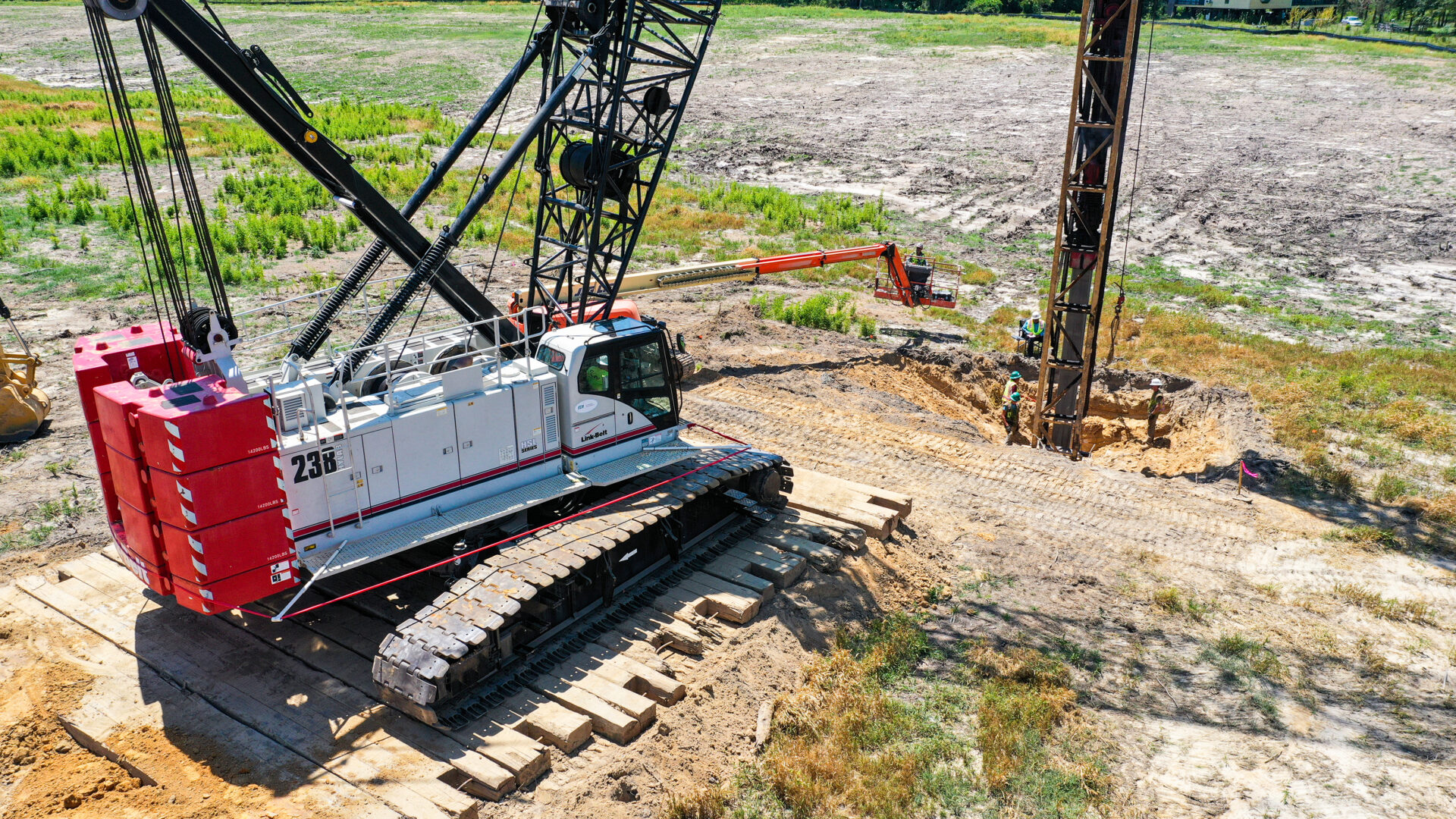

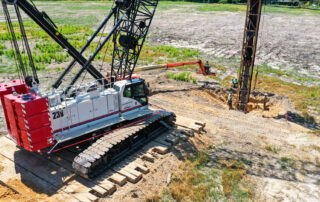

238 HSL
| Base Rating | 150 USt @ 14 ft 150 USt @ 14 ft |
|---|---|
| Boom Lengths | 50 ft – 260 ft 50 ft – 260 ft |
| Fixed Jib Lengths | 30 – 80 ft 30 – 80 ft |
| Fixed Jib Offsets | 5°, 15°, & 25° 5°, 15°, & 25° |
| Maximum Combination (Fixed Jib) | Tube: 230 ft + 80 ft Tube: 230 ft + 80 ft |
| Maximum Tip Height (Fixed Jib) | 314.2 ft 314.2 ft |
| Engine Make & Model | Cummins QSB6.7 Tier 4 Final Cummins QSB6.7 Tier 4 Final |
| Maximum Hoist Line Pull / Speed | 46,924 lbs / 502 fpm 46,924 lbs / 502 fpm |
| Working Weight | 262,677 lbs 262,677 lbs |
| Main Transport Load | 87,000 lbs w/o tracks 87,000 lbs w/o tracks |
All CranesKey Features
- Spacious cab with wide job site view
- Fully adjustable seat and console for operator comfort
- Fully adjustable operation speeds for fast and precise jobs
- Dual throttle with total horsepower control
- Operator limits with function slow down and stop
- Link-Belt Vision Package – Standard
- Full-leveled 360 degree chart pick and carry
- Designed for multifunction under any load conditions
- Auto brake and free swing
- Free fall standard
- Self-assembly
- Transport all overflow loads under 45,000 lbs
- Pin catcher for boom assembly/disassembly
- Boom pendant storage
