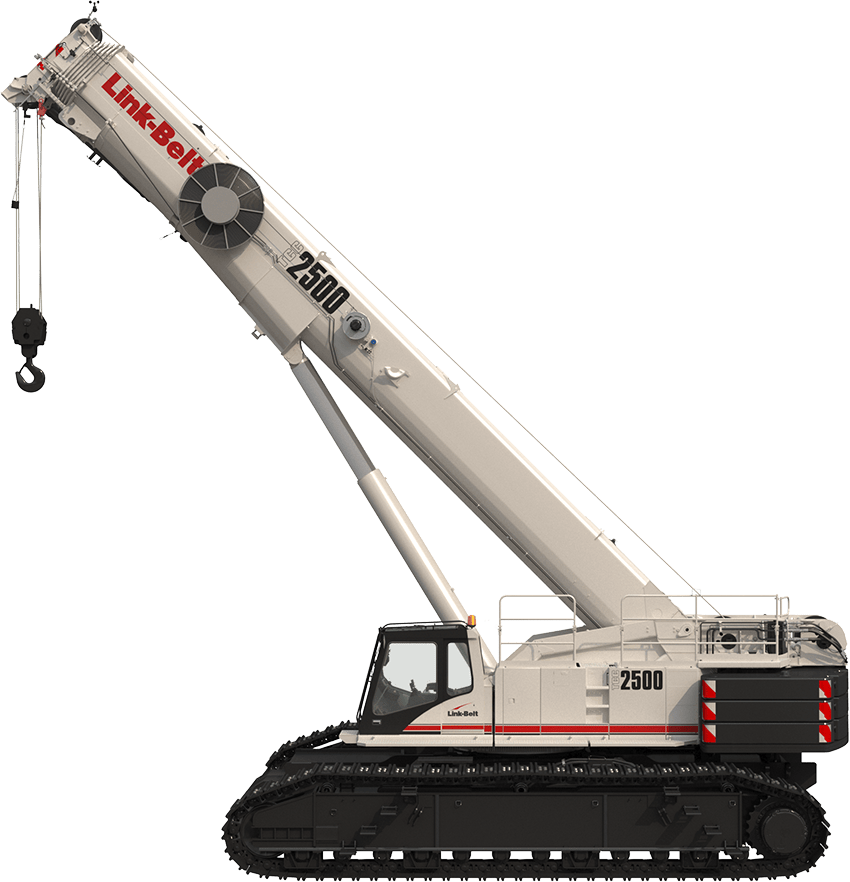

TCC-2500
Base Rating | 250 Ust 227 Mt |
---|---|
Main Boom | Seven Section Formed Boom Seven Section Formed Boom |
Length (min-max) | 43.7 - 223 ft 13.3 - 68 m |
Telescope System | Pin & Latch Pin & Latch |
Maximum Tip Height | 346 ft 105.4 m |
Engine Make & Model | Cummins QSL 9 Cummins QSL 9 |
Horsepower | 320 hp (239kW) @ 1,800 rpm 320 hp (239kW) @ 1,800 rpm |
Maximum Line Pull | 28,582 lbs 12,965 kg |
Maximum Line Speed No Load | 404 ft/min 123.1 m/min |
Standard Upper Weights | 154,000 lbs 69.8 Mt |
Standard Lower Weights | 44,000lbs 19.9 Mt |
Main Transport Load | 107,156 lbs 48,605 kg |
Overflow Loads | 7 7 |
Key Features
- 43.7 – 223 ft (13.3 – 68 m) main boom with power pin & latch
- Optional 12-40-67 ft three-piece fly with maximum tip height of 301ft.
- Optional, two 25 ft (7.6m) lattice boom extensions
- 351 ft (107m) maximum tip height with extensions
- 8 boom modes for maximizing capacities
- Lightweight nylon head sheaves reduce overall machine weight and increase lift capacities
- Quick reeve boom head with quick reeve block allows rope to be easily reeved over boom head
- Hammerhead boom nose allows operator to work at high boom angles
- Greaseless wear pads
- Standard equipped auxiliary sheave off main boom
- Pick-and-carry the whole chart
- 1°, 2°, 3° & 4° list chart selectable in RCL
- Transports complete in 8 loads
- Main unit transports 107,154 lbs (48 604 kg) with side frames removed
- 7 overflow loads under 44,500 lbs (20 185 kg) each
- Hook & Pin side frames with hydraulic pinning
- Four wide-spread hydraulic jacks for easy side frame assembly/disassembly
- 1.6 mph (2.6 k/hr) high speed travel
- Fold-up catwalks
