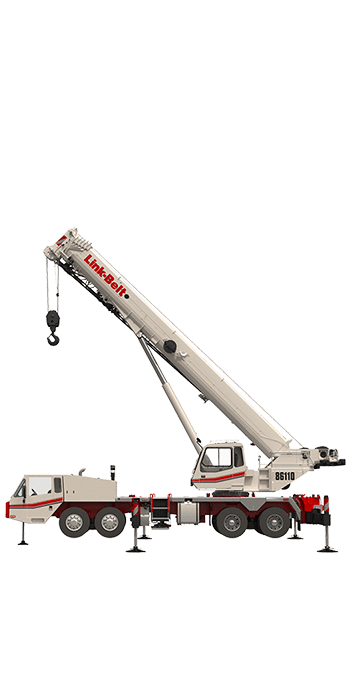

HTT-86110 - Link-Belt Cranes

HTT-86110

Nominal Capacity @ Radius	110 USt @ 7 ft 100 mt @ 2.1 m
Standard Boom	38.3 ft – 164.1 ft 11.7 m – 50 m
Telescope System	Pin & Latch Pin & Latch
Attachment - Option 1	A: 35 ft Bi-Fold Lattice Fly / B: 10 ft – 35 ft – 58 ft Bi-Fold Lattice Fly A: 10.7 m Bi-Fold Lattice Fly / B: 3 m – 10.7 m – 17.7 m Bi-Fold Lattice Fly
Attachment - Option 2	(1) or (2) 16 ft insert(s) (1) or (2) 4.9 m insert(s)
Maximum Tip Height	262 ft 79.7 m
Maximum Line Pull	20,739 lbs 92.3 kN
Attachment - Option 1	495 fpm 150.9 m/min

Key Features

Greaseless 38.3 ft – 164.1 ft pin and latch six-section boom
Manually offsetable one-, two-, or three-piece fly: offsetable to 0°, 15°, 30°, and 45°
One or two available lattice extensions to reach max tip height of 262 ft
Full three-piece fly is stowable on the machine, and no capacity deducts for stowed attachment
Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
Steerable rear axles — simple control switch in the carrier cab
Greatly reduced turning radius during travel
Front and rear tires and wheels are interchangeable
Transports under 105,000 lbs with 16,000 lbs of counterweight, three-piece fly, and 10-t ball installed
“Stow ‘n go” outrigger pontoons are easily secured for transport
Cummins X12: EPA 2022 Compliant On-Highway 455 HP Engine
ZF TraXon (no clutch pedal) Manual Transmission
Link-Belt Pulse operating system, including CALC-selectable outrigger extension system
Link-Belt Vision Package – Standard
Flat deck design — maintains four points of access regardless of upper position
Pull-out CabWalk for ease of access to and from the operator’s cab
