Outstanding efficiency traveling to the job site and excellent mobility.

175|AT
All Terrain Cranes

Nominal Capacity @ Radius

175 USt @ 7 ft
150 mt @ 2.1 m

Standard Boom

42.7 ft – 197.3 ft
13 m – 60.1 m

Telescope System

Pin & Latch
Pin & Latch

Attachment - Option 1

10 ft – 32.5 ft – 55 ft Bi-Fold Lattice Fly
3 m – 9.9 m – 16.8 m Bi-Fold Lattice Fly

Attachment - Option 2

(1), (2), or (3) 18 ft Lattice Extension(s)
(1), (2), or (3) 5.5 m Lattice Extension(s)

Maximum Tip Height

315.1 ft
96.1 m

Maximum Line Pull

23,622 lbs
105.1 kN

Maximum Speed

397 fpm
121 m/min

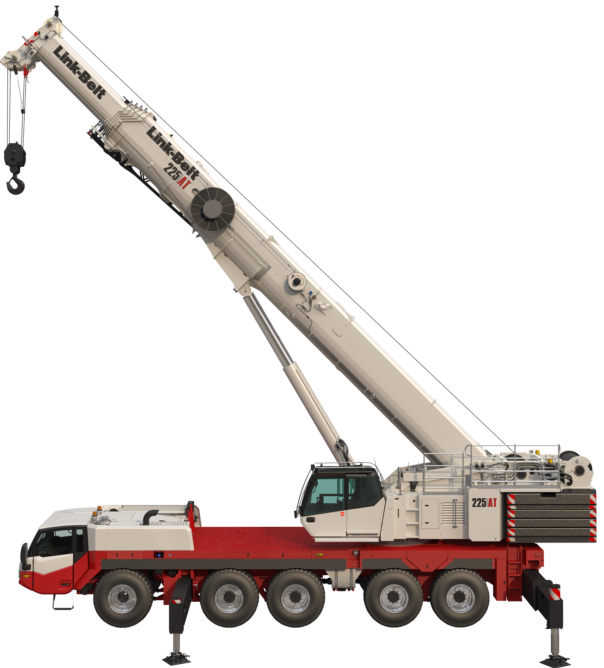

225|AT
All Terrain Cranes

Nominal Capacity @ Radius

225 USt @ 8 ft
200 mt @ 2.4 m

Standard Boom

46 ft – 202 ft
14 m – 61.5 m

Telescope System

Pin & Latch
Pin & Latch

Attachment - Option 1

42 ft – 71 ft Bi-Fold Lattice Fly
12.8 m – 21.6 m Bi-Fold Lattice Fly

Attachment - Option 2

(1) or (2) 25 ft Lattice Extension(s)
(1) or (2) 5.5 m Lattice Extension(s)

Maximum Tip Height

334 ft
102 m

Maximum Line Pull

29,392 lbs
130.7 kN

Maximum Speed

450 fpm
137.2 m/min

300|AT
All Terrain Cranes

Nominal Capacity @ Radius

300 USt @ 8 ft
275 mt @ 2.4 m

Standard Boom

46.1 ft – 238.7 ft
14.1 m – 72.6 m

Telescope System

Pin & Latch
Pin & Latch

Attachment - Option 1

42 ft – 71 ft Bi-Fold Lattice Fly
12.8 m – 21.6 m Bi-Fold Lattice Fly

Attachment - Option 2

(1) or (2) 25 ft Lattice Extension(s)
(1) or (2) 5.5 m Lattice Extension(s)

Maximum Tip Height

365 ft
111 m

Maximum Line Pull

29,392 lbs
130.7 kN

Maximum Speed

369 fpm
112.5 m/min
