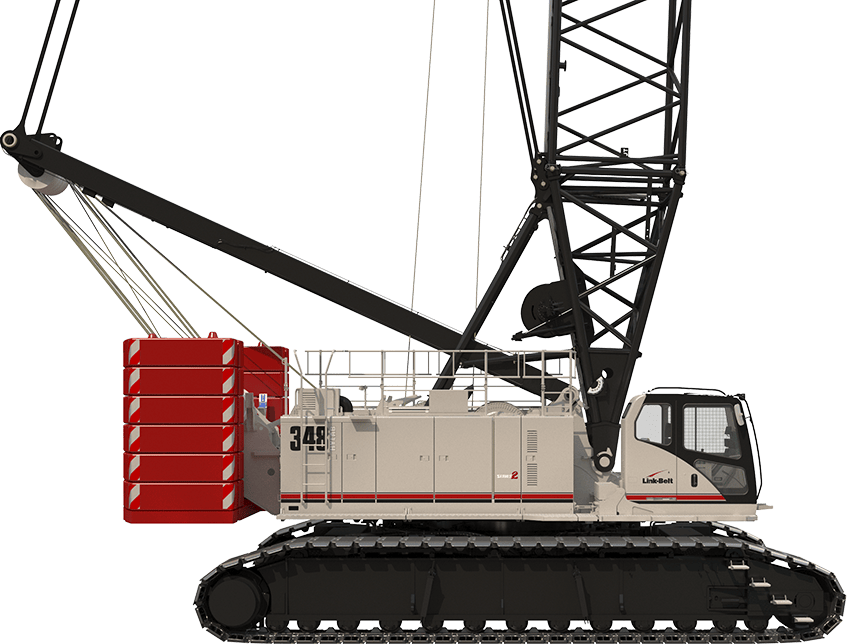

348 Series 2 - Link-Belt Cranes

348 Series 2

Base Rating	300 USt @ 16 ft 272.2 mt
Boom Lengths	70 ft – 300 ft Heavy Duty / 85 ft – 355 ft Long Range 21.3 m – 91.4 m Heavy Duty / 25.9 m – 108.2 m Long Range
Fixed Jib Lengths	40 ft – 140 ft 12.2 m – 42.7 m
Fixed Jib Offsets	5°, 15°, & 30° 5°, 15°, & 30°
Maximum Combination (Fixed Jib)	240 ft + 140 ft Heavy Duty / 295 ft + 140 ft Long Range 240 ft + 140 ft Heavy Duty / 295 ft + 140 ft Long Range
Luffer Lengths	100 ft – 240 ft 100 ft – 240 ft
Maximum Combination (Luffer)	180 ft + 240 ft 180 ft + 240 ft
Engine Make & Model	Cummins QSL9 Tier 4 Final Cummins QSL9 Tier 4 Final
Maximum Hoist Line Pull / Speed	53,306 lbs / 543.4 fpm 24 179.2 kg / 156.9 mpm
Working Weight	516,178 lbs 234 134.4 kg
Main Transport Load	98,200 lbs 44 542.7 kg

Key Features

Heavy-duty combination top section for conventional and luffing jib configurations
Ultrawide winch drum
Common extensions with 348 HYLAB 5
New and improved counterweight removal system
Transport weight: 98,200 lbs (44 550 kg)
Bar pendants
Boom walkways
Quiet, smooth-running, fuel-efficient Cummins QSL9 Tier IV Final power with 320 hp
Matching front and rear drums — 35.3 inches wide, grooved for 28 mm rope
17-piece modular counterweight system with remote control-operated hydraulic removal system
Standard collapsible upper guardrails
Optional third drum mounts in boom
Optional free fall
Spacious cab with wide job site view
Fully adjustable seat and console for operator comfort
Fully adjustable operation speeds for fast and precise jobs
Dual throttle with total horsepower control
Operator limits with function slow down and stop
Link-Belt Vision Package – Standard
Full-leveled 360 degree chart pick and carry
Designed for multifunction under any load conditions
Auto brake and free swing
Self-assembly
