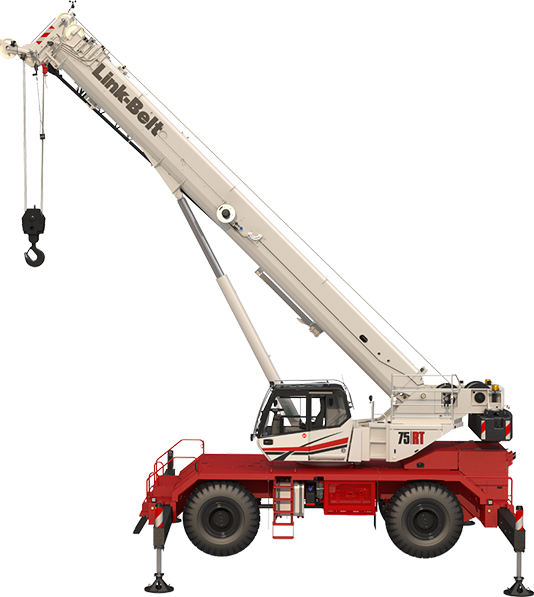

75|RT - Link-Belt Cranes

75|RT

Nominal Capacity @ Radius	75 USt @ 8 ft 70 mt @ 2.5 m
Standard Boom	38 ft – 142 ft 11.6 m – 43.3 m
Telescope System	Full Power Full Power
Attachment - Option 1	10 ft – 35 ft – 58 ft Bi-Fold Lattice Fly 3 m – 10.7 m – 17.7 m Bi-Fold Lattice Fly
Maximum Tip Height	208.7 ft 63.6 m
Maximum Line Pull	18,603 lbs 82.8 kN
Maximum Line Speed	485 fpm 147.8 m/min

Key Features

Greaseless 38 ft – 142 ft (11.6 m – 43.3 m) full-power five-section boom
Two-piece manual offsetable fly is available with offset positions of 2°, 15°, 30°, and 45° with no capacity deducted for stowed attachment
Fully rigged transports under 100,000 lbs (45 359 kg) with counterweight installed
Ergonomic operator’s cab designed with the operator in mind
Link-Belt Pulse 2.0 load moment indicator display with V-CALC, allowing for virtually limitless outrigger configurations
Full LED lighting with Link-Belt Vision Package – Standard
0° – 20° tilting cab
Steel flat deck design with anti-skid textured paint
Three lockable storage boxes
Six egress points with unbeatable engine access
Four steering modes
Greaseless 4-Link Suspension
Fall arrest anchors
