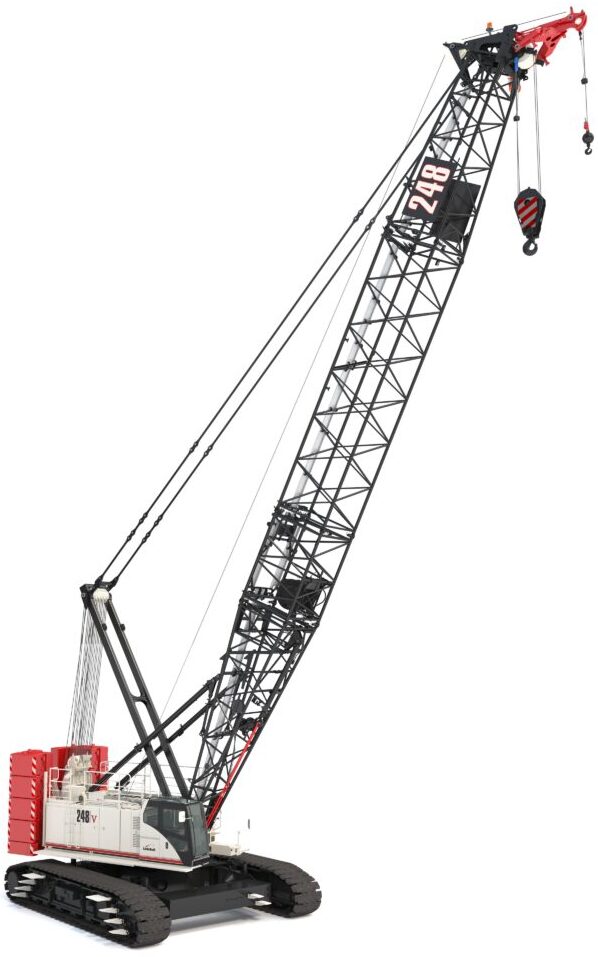

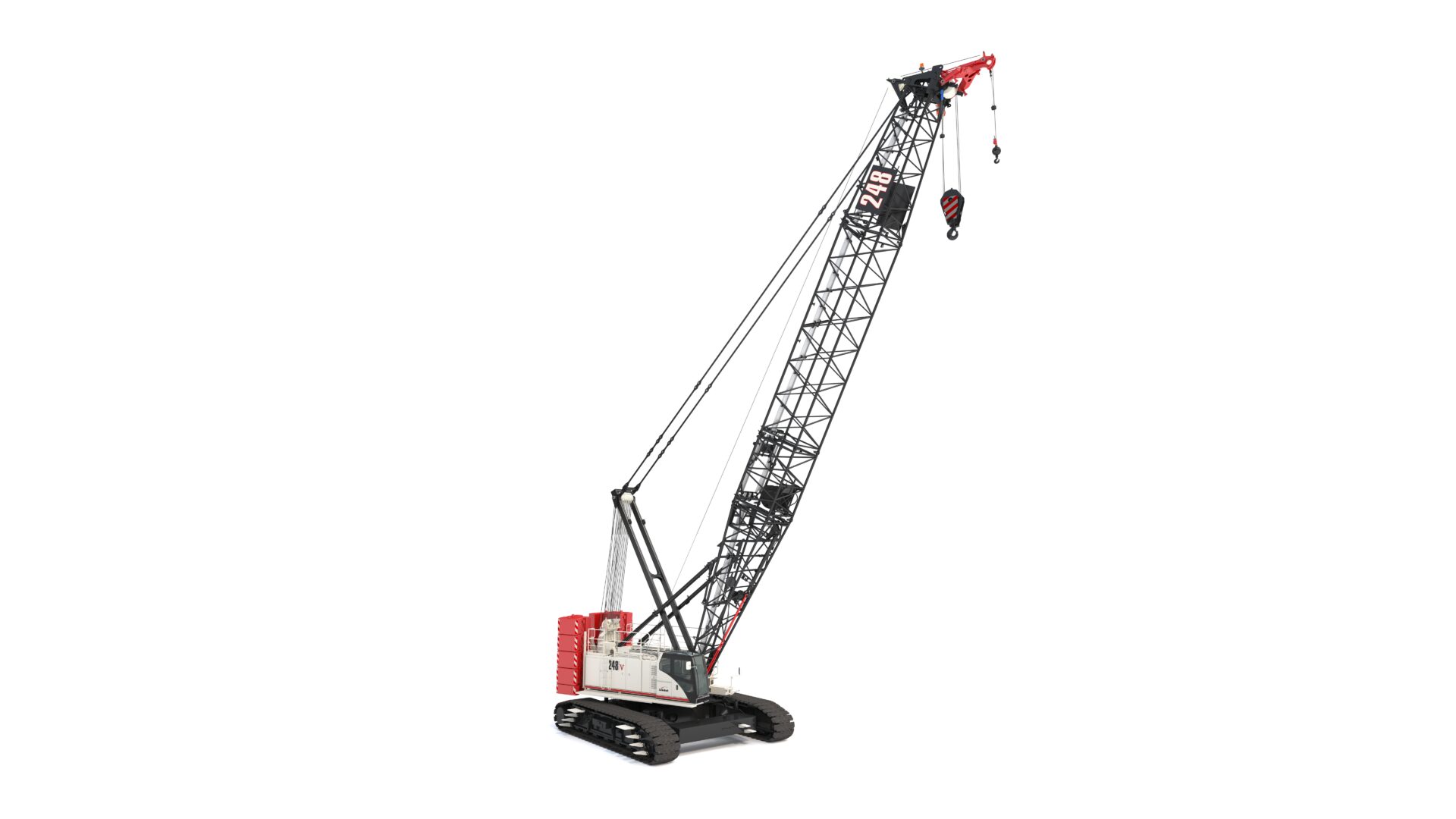

248|V - Link-Belt Cranes

248|V

Base Rating	200 USt 181 mt
Boom Lengths	55 ft – 275 ft 16.8 m – 83.8 m
Fixed Jib Lengths	30 ft – 100 ft 9.1 m – 30.5 m
Maximum Combination (Fixed Jib)	Tube: 235 ft + 100 ft 71.6 m + 30.5 m
Fixed Jib Offsets	5°, 15°, & 25° 5°, 15°, & 25°

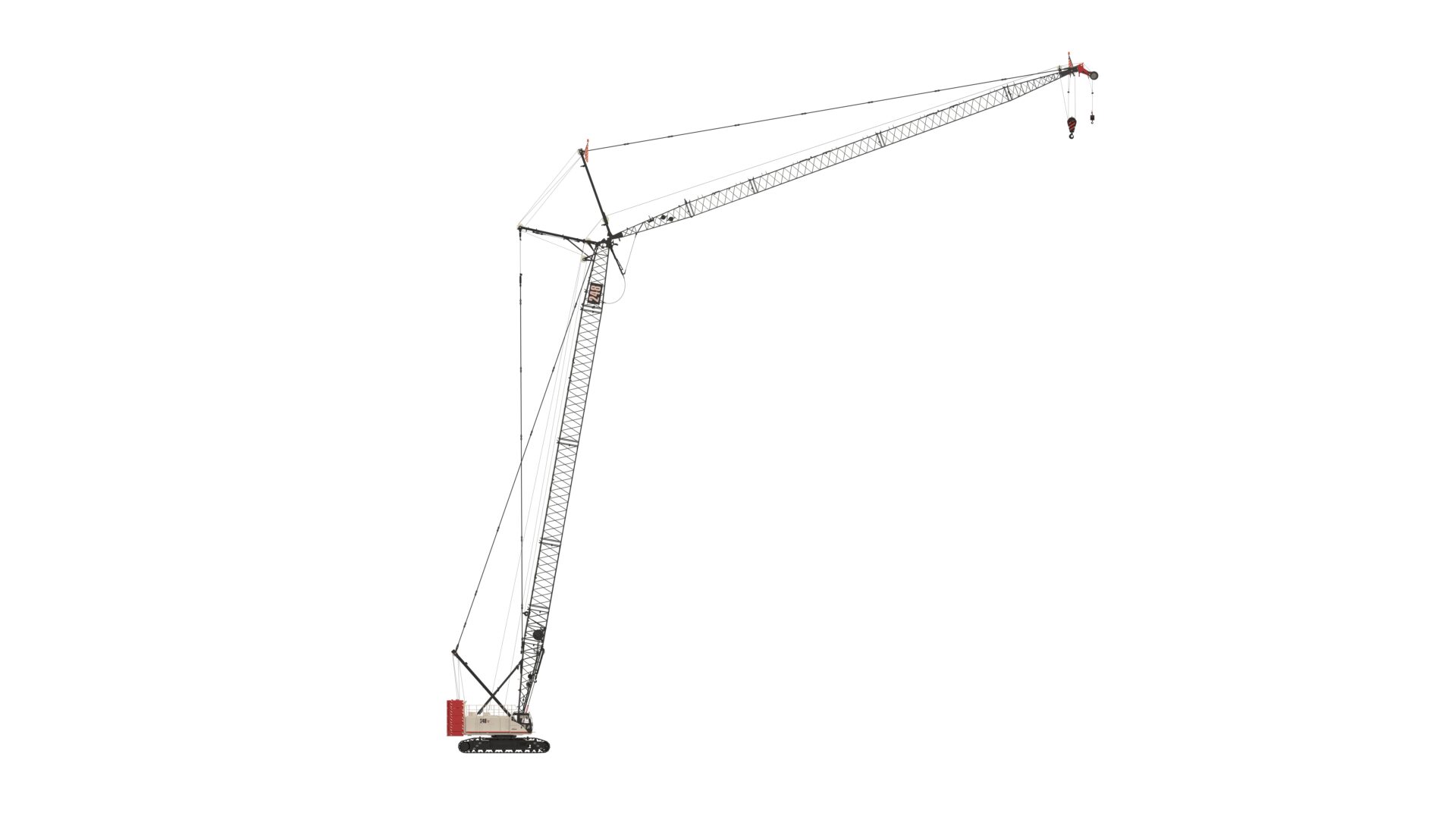

Luffing Jib Lengths	85 ft – 185 ft 25.9 m – 56.4 m
Maximum Combination (Luffer)	155 ft + 185 ft 47.2 m + 56.4 m
Engine Make & Model	Cummins QSB6.7 Tier 4 Final/Stage V Cummins QSB6.7 Tier 4 Final/Stage V
Maximum Hoist Line Pull / Speed	46,925 lbs / 533 fpm 21 284 kg / 162.6 mpm
Working Weight	359,286 lbs 162 969 kg
Main Transport Load	90,632 lbs w/ base section 41 111 kg w/ base section

View Larger

Brochure

Technical Data

All Cranes Lattice Crawler Cranes

Key Features

Standard combo top for conventional boom, pile driving, luffing jib, fixed jib, and heavy-duty tip extension
Spacious, climate-controlled cab with heated seat, featuring wide job site views
Available HVAC Auxiliary Power Unit (APU)
NEW 12-inch HSL-2 touchscreen load moment limiter
Ground bearing pressures for conventional boom, fixed jib, and luffer
Operator-setable working range restrictions with function slow down/stop
Cummins Engine, compatible with HVO fuel
Link-Belt’s Standard Vision Package with rear, winch, and swing cameras
Dual throttle for engine speed and pump flow
Designed for multifunction under any load condition
Fine-tuning dials for function speeds
Standard Winch Package with wet brakes and free fall
Standard ECO winch for faster line speeds with lower engine RPM
Full self-assembly; no assist crane required
Heavy-duty undercarriage designed for durability and longevity
Pick and carry all 360° capacities on level ground
iCraneTrax telematics equipped
Conventional boom and luffer bar pendants store on top of boom sections
All boom sections feature double-tapered connection pins with pin catcher storage brackets
Mounting lugs for power unit frame
Main unit with boom base section transports at 90,632 lbs (41 111 kg)

Media

Frequently Asked Questions

How many truck loads does it take to transport the 248|V from job to job?GRIFFIN FLETCHER2026-10-07T10:58:08-05:00

How many truck loads does it take to transport the 248|V from job to job?

A major advantage of the 248|V is its self-assembly cylinder, which travels with the main unit, along with the base section and reeving winch, while remaining under 91,000 pounds. With nine overflow loads for 275 feet of boom and 100 feet of fixed jib, the crane is designed to arrive ready for efficient setup.

What is unique about cranes that feature a combo top?GRIFFIN FLETCHER2026-10-07T10:55:34-05:00

What is unique about cranes that feature a combo top?

The combo top on the 248|V, 298 Series 2, and 348 Series 2 allows the crane to mount it’s heavy-duty tip extension, fixed jib, luffer, or pile-driving leads (248|V only) all with one top. This design eliminates the need for an additional attachment to mount the luffer to the main boom, reducing transport requirements and setup time.

What models have a 12-inch Load Moment Limiter (LML) display?GRIFFIN FLETCHER2026-10-07T10:53:50-05:00

What models have a 12-inch Load Moment Limiter (LML) display?

The 218|V and 248|V have an intuitive 12-inch HSL-2 LML touchscreen display that gives operators a clean view of real working-range geometry, advanced yet easy-to-understand diagnostics, live or simulated ground bearing pressures for the crane’s full configuration, operator-settable alarms with kickouts, and counterweight sensing.

What are the newest features on the 248|V?GRIFFIN FLETCHER2026-10-07T10:51:48-05:00

What are the newest features on the 248|V?

The 248|V includes key V Series enhancements, such as a 12-inch HSL-2 display, combo top, redesigned third drum, counterweight sensing, power pack mounting lugs, LED lighting, Cummins Stage V engine, APU, improved accessibility and self-assembly/disassembly, swing boundary poles, fall-protection anchors, screw-type quick disconnects, and button-socket end ropes.

What models offer an Auxiliary Power Unit (APU), and how can it reduce operating costs?GRIFFIN FLETCHER2026-10-07T10:23:56-05:00

What models offer an Auxiliary Power Unit (APU), and how can it reduce operating costs?

The 218|V, 228 HSL, and 248|V have a Link-Belt-designed APU that allows the main unit’s engine to be off while continuing to power the cab, LML display, Bluetooth radio, heated seat, and all lights while providing climate control. This greatly reduces fuel consumption and engine hours on the main engine. The APU is also available as a retrofit kit for existing 218|V, 218 HSL, 228 HSL, and 248|V cranes.
