100|RT - Link-Belt Cranes

100|RT

Nominal Capacity @ Radius	100 USt @ 8 ft 90 mt @ 2.5 m
Standard Boom	40.6 ft – 155 ft 12.3 m – 47.2 m
Telescope System	Full Power Full Power
Attachment - Option 1	35 ft – 58 ft Bi-Fold Lattice SmartFly 10.7 m – 17.7 m Bi-Fold Lattice SmartFly
Attachment - Option 2	(1) 16 ft Lattice Extension (1) 4.9 m Lattice Extension
Maximum Tip Height	237 ft 72.3 m
Maximum Line Pull	23,632 lbs 105.1 kN
Maximum Line Speed	354 fpm 107.9 m/min

Key Features

Greaseless 40.6 ft – 155 ft (12.3 m – 47.2 m) full-power five-section boom
Two-piece manual offsetable SmartFly is available with offset positions of 2°, 15°, 30°, and 45° with no capacity deducted for stowed attachment
One available lattice insert to achieve a max tip height of 237 ft (72.3 m)

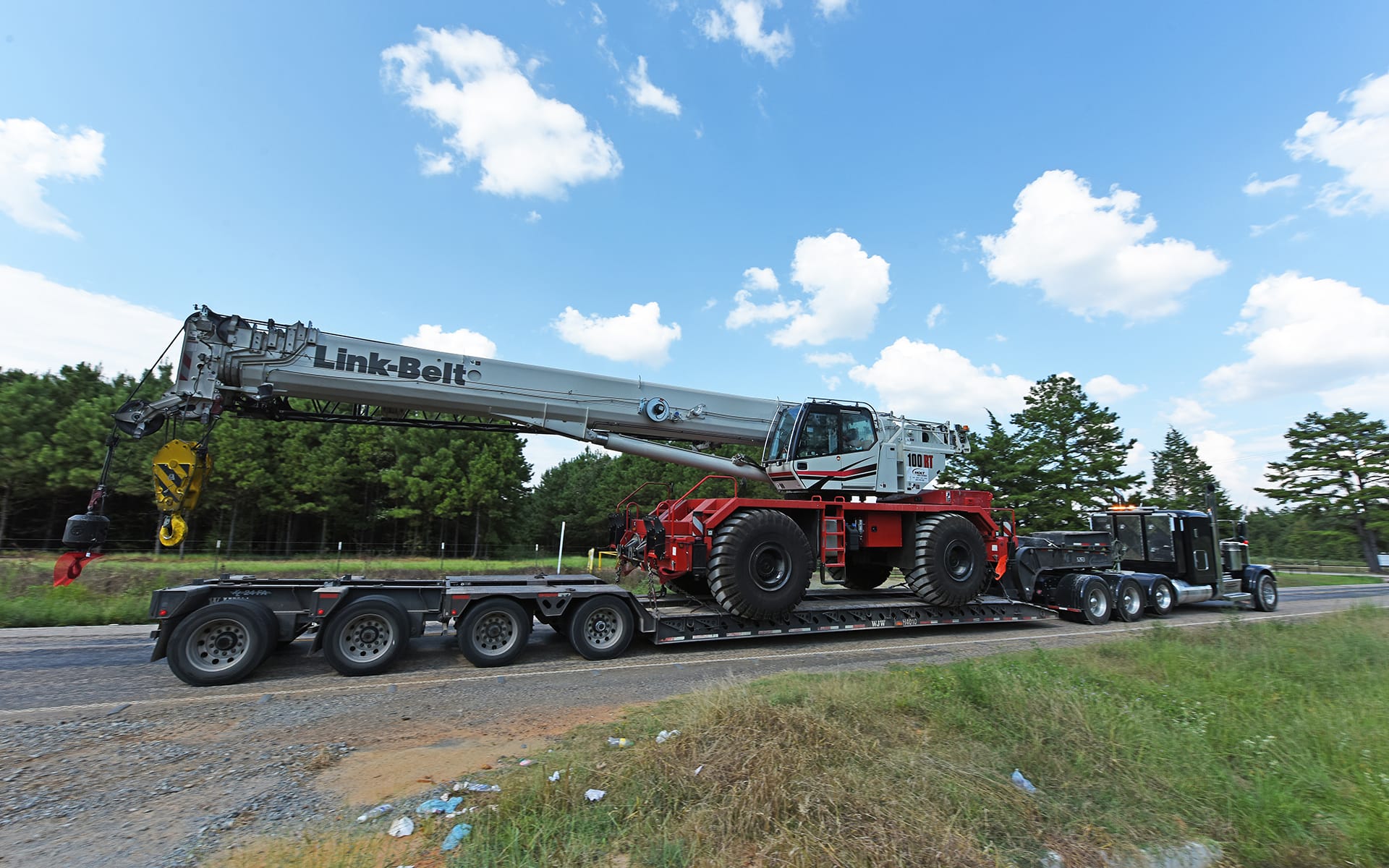

Fully rigged transports under 94,000 lbs (42 638 kg) counterweights removed and one fall-off load
Ergonomic operator’s cab designed with the operator in mind
Link-Belt Pulse 2.0 load moment indicator display with V-CALC, allowing for virtually limitless outrigger configurations
Full LED lighting with Link-Belt Vision Package – Standard
0° – 20° tilting cab
Steel flat deck design with anti-skid textured paint
Three lockable storage boxes
Six egress points with unbeatable engine access
Four steering modes
Greaseless 4-Link Suspension
Fall arrest anchors
