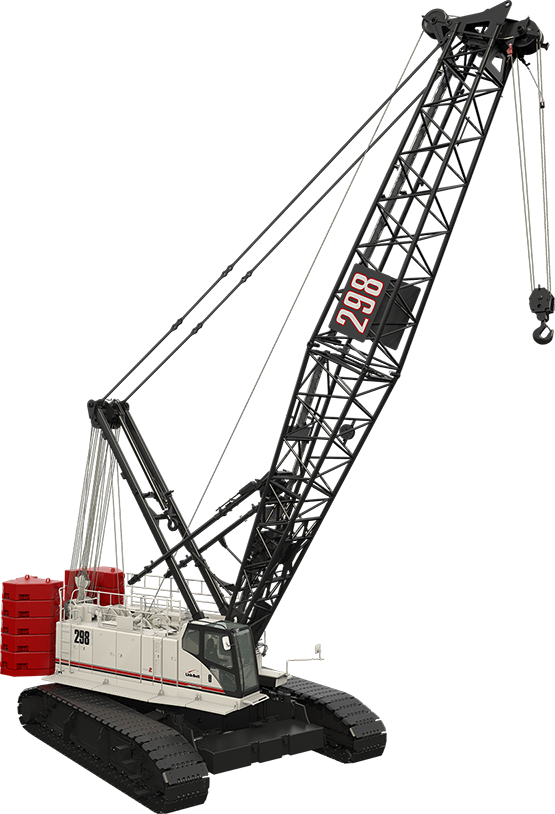

298 Series 2
| Base Rating | 250 USt @ 15 ft 226.8 mt @ 4.6 m |
|---|---|
| Boom Lengths | 60 ft – 290 ft 18.2 m – 88.4 m |
| Fixed Jib Lengths | 30 ft – 90 ft 9.1 m – 27.4 m |
| Fixed Jib Offsets | 10°, 20°, & 30° 10°, 20°, & 30° |
| Maximum Tip Height (Fixed Jib) | 342 ft 104.2 m |
| Engine Make & Model | Cummins QSL 9 Cummins QSL 9 |
| Horsepower | 320 gross hp @ 1,800 rpm 320 gross hp @ 1,800 rpm |
| Maximum Hoist Pull / Speed | 53,306 lbs 53,306 lbs |
| Working Weight | 416,538 lbs w/ 48 ft shoes 188938.4 kg w/ 14.6 m shoes |
| Main Transport Load | 88,000 lbs (1 Over Weight Load) 39916.1 kg (1 Over Weight Load) |
All CranesKey Features
- Heavy-duty combination top section for conventional and luffing jib configurations
- Bar pendants
- Boom walkways
- Quiet, smooth-running, fuel-efficient Cummins QSL9 Tier 4 Final power with 320 hp
- Matching front and rear drums — 35.3 inches wide, grooved for 28 mm rope
- Optional free fall
- Optional third drum mounts in boom
- Eleven-piece modular counterweight system with remote control-operated hydraulic removal system
- Standard collapsible upper guardrails
- Spacious cab with wide job site view
- Fully adjustable seat and console for operator comfort
- Fully adjustable operation speeds for fast and precise jobs
- Dual throttle with total horsepower control
- Operator limits with function slow down and stop
- Link-Belt Vision Package – Standard
- Full-leveled 360 degree chart pick and carry
- Designed for multifunction under any load conditions
- Self-assembly
- Auto brake and free swing
- Transport all overflow loads under 45,000 lbs
