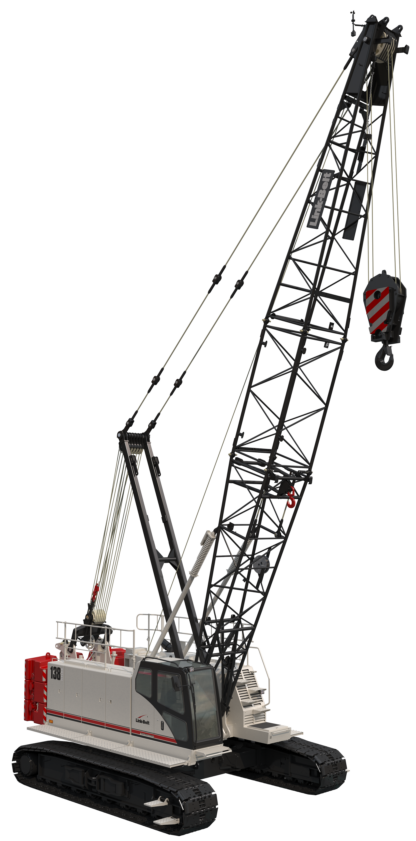

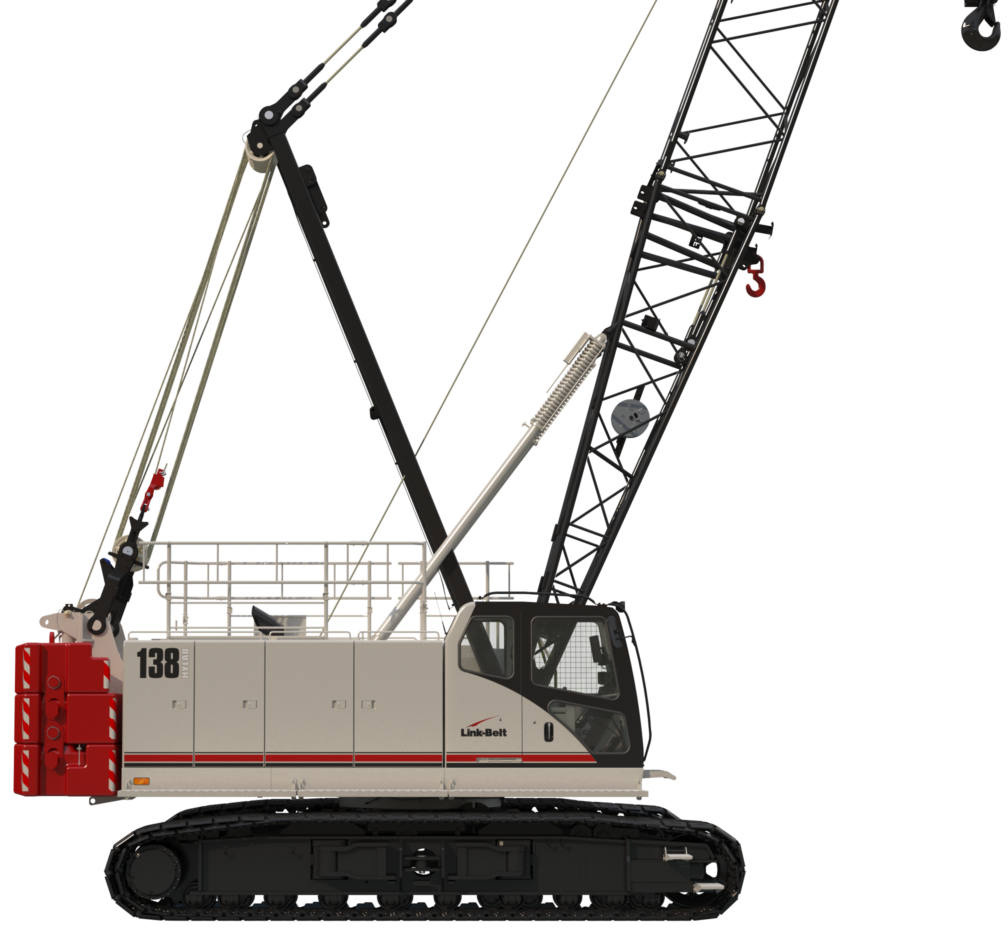

138 HSL - Link-Belt Cranes

138 HSL

Base Rating	80 USt @ 12 ft 73 mt @ 3.6 m
Boom Lengths	Tube: 40 ft – 200 ft Tube: 12.2 m – 70 m
Boom Lengths	Angle: 40 ft – 150 ft Angle: 12.2 m – 45.7 m
Fixed Jib Lengths	30 ft – 60 ft 9.1 m – 18.3 m
Fixed Jib Offsets	5°, 15°, & 25° 5°, 15°, & 25°
Maximum Combination (Fixed Jib)	Tube: 180 ft + 60 ft Tube: 54.9 m + 18.3 m
Maximum Combination (Fixed Jib)	Angle: 150 ft + 60 ft Angle: 45.7 m + 18.3 m
Maximum Tip Height (Fixed Jib)	Tube: 242 ft Tube: 73.8 m
Maximum Tip Height (Fixed Jib)	Angle: 213.7 ft Angle: 65.1 m
Engine Make & Model	Cummins QSB6.7 Tier 4 Final Cummins QSB6.7 Tier 4 Final
Maximum Hoist Line Pull / Speed	31,182 lbs / 450 fpm 14 143 kg / 137.2 mpm
Working Weight	145,403 lbs 65 953 kg
Main Transport Load	88,121 lbs w/ tracks 39 971 kg w/ tracks

Key Features

Spacious, air-conditioned cab featuring wide job site views
Fully adjustable seat and console for operator comfort
Operator-settable working range restrictions with function slow down/stop
Link-Belt’s Vision Package standard with rear, winch, and swing cameras
Dual throttle for engine speed and pump flow
Cummins engine, compatible with HVO fuel
Designed for multifunction under any load condition
Fine-tuning dials for function speeds
Standard auto brake and free swing functions
Standard Winch Package with wet brakes and free fall
Full self-assembly – No assist crane required
Heavy-duty undercarriage designed for durability and longevity
Pick and carry all 360° capacities on level ground
iCraneTrax telematics equipped
All boom sections feature double-tapered connection pins with pin catcher storage brackets
All overflow loads transport under 45,000 pounds (20 411 kilograms)
