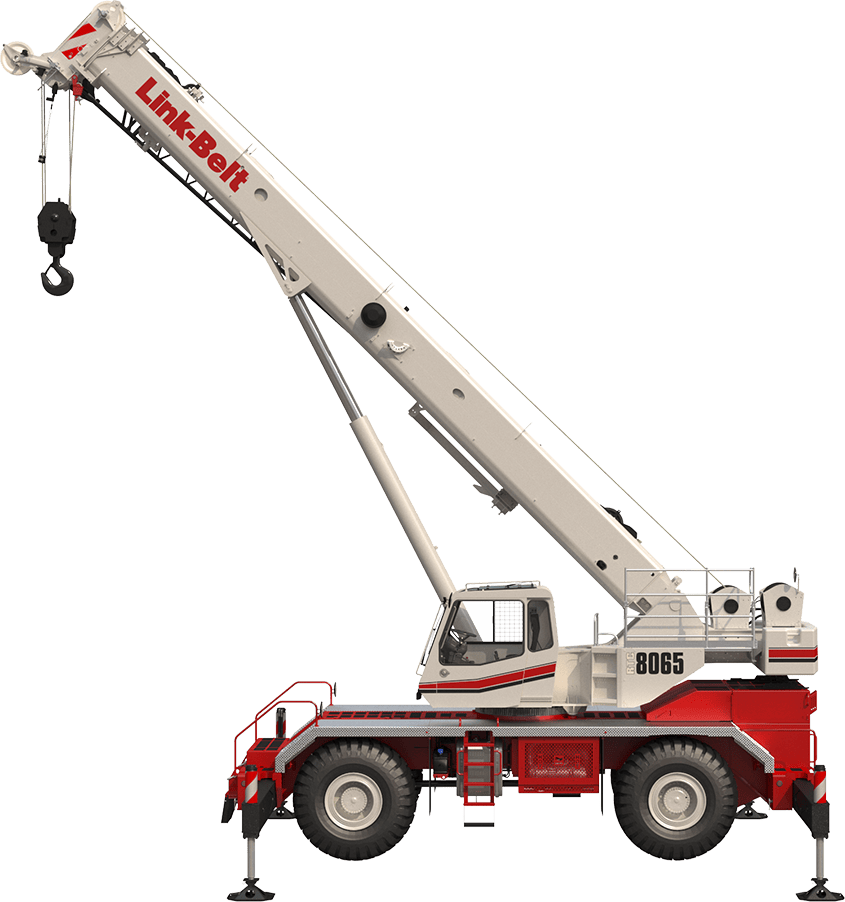

RTC-8065 SII
| Nominal Capacity @ Radius | 65 USt @ 9 ft 60 Mt @ 2.5 m |
|---|---|
| Standard Boom | 38 - 115 ft 11.6 - 35.0 m |
| Telescope System | Full Power Full Power |
| Attachment - Option 1 | 35 - 58 ft Bi-Fold Lattice Fly 10.7 - 17.7 m Bi-Fold Lattice Fly |
| Attachment - Option 2 | (1) or (2) 16 ft Lattice Extensions (1) or (2) 4.9 m Lattice Extensions |
| Maximum Tip Height | 211.6 ft 64.5 m |
| Maximum Line Pull | 16,883 lbs 75.10 kN |
| Maximum Speed | 459 fpm 139.9 m/min |
All CranesKey Features
- Fully rigged transport weight of less than 90,000 lbs (40 832.3 kg)
- Boom wear pads have Teflon pucks that lubricate the boom sections (no grease)
- Four fly options feature four offset positions of 2°, 15°, 30°, and 45°
- Next generation operator’s cab with improved visibility and ergonomics
- Integral air conditioning – optional
- 4-Link suspension on the rear axle with an optional Hydro-Gas Ride™ system
- 4-mode steering controlled from the steering wheel
- Full-length flat deck with integrated steps and handholds
- Large swing out engine hood doors for ease of service
- Access ladders and folding guardrails
