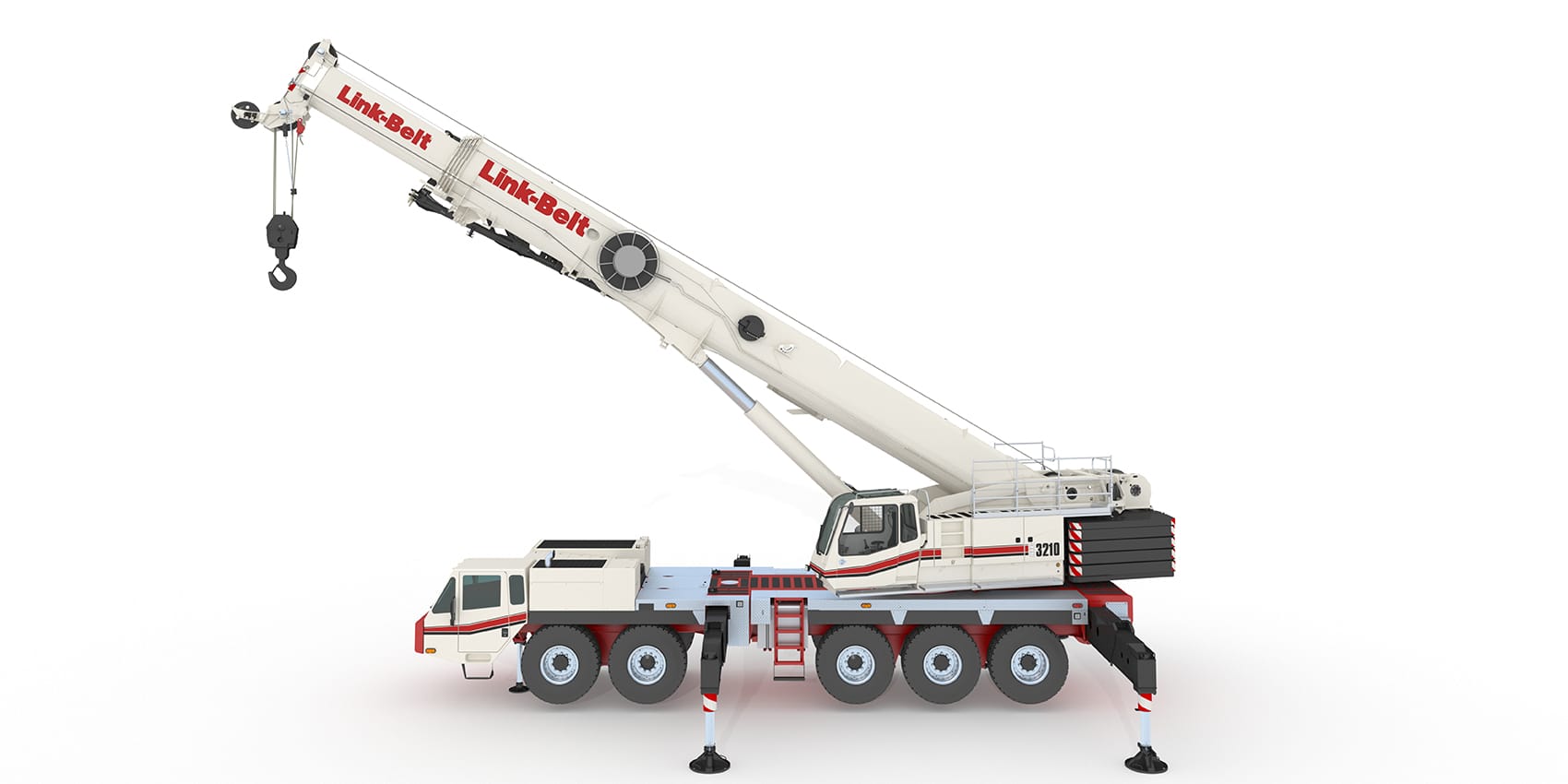

ATC-3210

Nominal Capacity @ Radius
210 USt @ 8 ft
185 mt @ 2.4 m
Standard Boom
44.3 ft – 200.1 ft
13.5 m – 61.1 m
Telescope System
Pin & Latch
Pin & Latch
Attachment - Option 1
12-ft – 40-ft – 67-ft Bi-Fold Lattice Fly
3.65-m – 12.2-m – 20.42-m Bi-Fold Lattice Fly
Attachment - Option 2
(2) 25-ft Lattice Extensions
(2) 7.62-m Lattice Extensions
Maximum Tip Height
326.7 ft
99.6 m
Maximum Line Pull
25,955 lbs
115.5 kN
Maximum Speed
405 fpm
123.4 m/min

Key Features

  • Greaseless 44.3-ft – 200.1-ft “pin & latch” six-section boom
  • Three-piece (12 ft – 40 ft – 67 ft) fly with integrated heavy-lift section: manual OR hydraulic offset options
  • One or two available 25-ft lattice inserts to achieve max tip height of 326.7 ft
  • Full three-piece fly is stowable on the machine: no capacity deducts for stowed attachment
  • Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
  • Modular counterweight designed for maximizing transport efficiency — three overflow loads for max counterweights and max fly
  • Cummins EPA 2022 ISX15 On-Highway 550 HP: Carrier
  • Cummins QSB T4F/Stage V Compliant Off-Highway 215 HP Engine: Upper
  • ZF AS-Tronic (no clutch pedal) Manual Transmission
  • Link-Belt Pulse total crane operating system, including CALC-individual outrigger extension system
  • Outriggers with auto-leveling
  • Job site travel with max counterweight
  • Large removable engine hood doors & remote-mounted filters for ease of service
  • Link-Belt Vision Package: Standard
  • Flat deck design — maintains four points of access regardless of upper position
