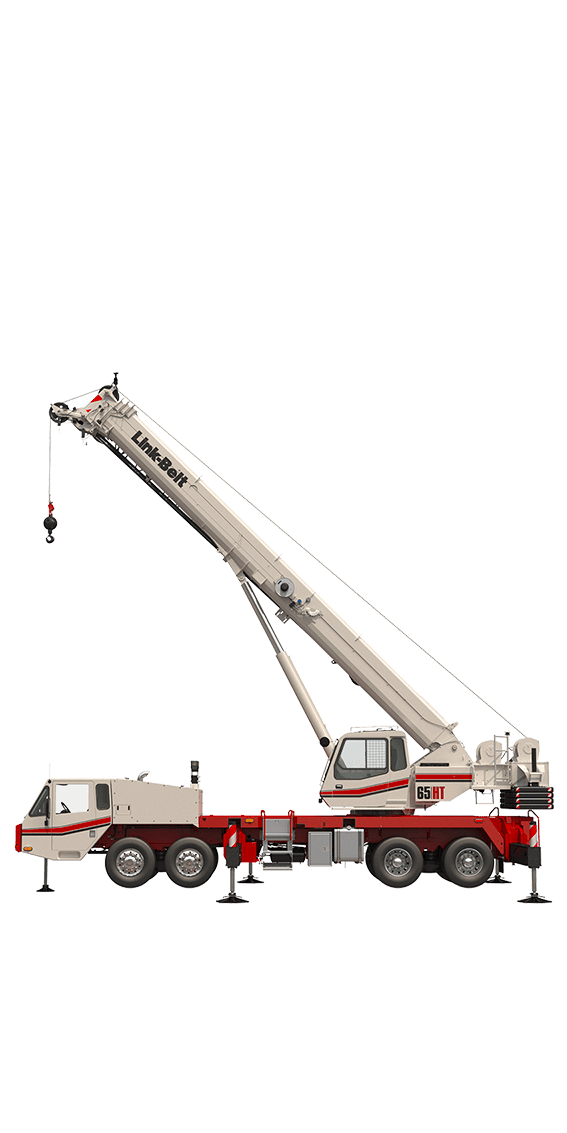

65|HT - Link-Belt Cranes

65|HT

Nominal Capacity @ Radius	65 USt @ 7 ft 55 mt @ 2.1 m
Standard Boom	36.8 ft – 115 ft 11.2 m – 35 m
Telescope System	Full Power Full Power
Attachment - Option 1	28.5 ft Bi-Fold Lattice Fly 8.7 m Bi-Fold Lattice Fly
Attachment - Option 2	28.5 ft – 51 ft Bi-Fold Lattice Fly 8.7 m – 15.5 m Bi-Fold Lattice Fly
Maximum Tip Height	171 ft 52.2 m
Maximum Line Pull	15,822 lbs 70.7 kN
Maximum Speed	462 fpm 140.8 m/min

Key Features

36.8 ft – 115 ft full-power greaseless formed boom (five feet longer than predecessor)
28.5 – 51 ft two-piece onboard fly
Full fly is stowable on the machine, and no capacity deducts for stowed attachment
171 ft maximum tip height with full attachment
Transports fully equipped at under 84,000 lbs with 18,400 lb counterweight
100% designed, tested, and built in the USA
EPA 2022 Compliant On-Highway 370 HP Cummins L9 Engine
ZF AS-Tronic (no clutch pedal) Manual Transmission
Link-Belt Pulse operating system, including CALC-selectable outrigger extension system
Link-Belt Vision Package – Standard
Flat, textured finish deck design — maintains four points of access regardless of upper position
