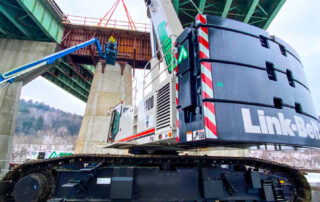

TCC-1400 - Link-Belt Cranes

TCC-1400

Base Rating	140 USt @ 10 ft 127 mt @ 2.3 m
Main Boom	Six-Section Formed Boom Six-Section Formed Boom
Length (min-max)	42.4 ft – 195.4 ft 12.9 m – 59.5 m
Telescope System	Pin & Latch Pin & Latch
SmartFly Attachment	10 ft – 31 ft – 55 ft 3 m – 9.4 m – 16.7 m
Maximum Tip Height	257.6 ft 78.5 m
Engine Make & Model	Cummins QSL9 Tier 4 Final Cummins QSL9 Tier 4 Final
Horsepower	320 hp @ 1,800 rpm 239 kW @ 1,800 rpm
Maximum Line Pull / Maximum Line Speed	22,380 lbs / 537 fpm 10 151 kg / 163.7 mpm
Standard Upper Weights	57,000 lbs 25 854 kg
Standard Lower Weights	25,000 lbs 11 339 kg
Main Transport Load	93,600 lbs 42 456 kg
Overflow Load	3-4 3-4

Key Features

New fly pinning designed for limited ladder use and eliminates hammering pins
Lightweight nylon head sheaves reduce overall machine weight and increase lift capacities
Quick-reeve boom head with quick-reeve block allows rope to be easily reeved over boom head
Hammerhead boom nose allows operator to work at high boom angles
Greaseless wear pads
Optional auxiliary sheave off main boom
Pick and carry the whole chart
List chart selections in LMI
Transports complete in four or five loads
Main unit transports at 93,600 lbs (42 456 kg) with side frames removed
Three to four overflow loads under 44,500 lbs (20 185 kg)
Four widespread hydraulic jacks for easy side frame assembly/disassembly
2 mph (3.2 kph) high-speed travel
Fold-up catwalks
