228 HSL - Link-Belt Cranes

228 HSL

Base Rating	130 USt @ 12 ft 130 USt @ 12 ft
Boom Lengths	Tube: 45 ft – 235 ft Tube: 45 ft – 235 ft
Boom Lengths	Angle: 45 ft – 155 ft Angle: 45 ft – 155 ft
Fixed Jib Lengths	Tube: 30 ft – 75 ft Tube: 30 ft – 75 ft
Fixed Jib Offsets	5°, 15°, & 25° 5°, 15°, & 25°
Maximum Combination (Fixed Jib)	Tube: 205 ft + 75 ft Tube: 205 ft + 75 ft
Maximum Tip Height (Fixed Jib)	284 ft 284 ft
Engine Make & Model	Cummins QSB6.7 Tier 4 Final Cummins QSB6.7 Tier 4 Final
Maximum Hoist Line Pull / Speed	44,565 lbs / 536 fpm 44,565 lbs / 536 fpm
Working Weight	235,041 lbs 235,041 lbs
Main Transport Load	119,541 lbs w/ tracks 119,541 lbs w/ tracks

Key Features

Excellent transportability — Five total loads with side frames installed with full boom and jib (six total loads with side frames removed with full boom and jib)
Main load with main and auxiliary rope, boom base section, and side frames installed — 119,541 lbs (54 224 kg)
Main load with main and auxiliary rope, boom base section and side frames removed — 73,941 lbs (33 540 kg)
Standard car body jacks for self-assembly — maximum ground clearance of 44 in. (1.1 m)
Standard upper guardrails — collapse down to meet transport height restrictions

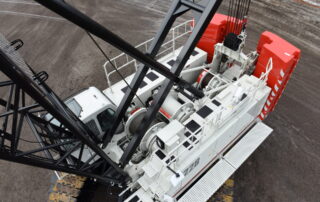

Nine-piece modular counterweight system design
Two car body counterweights
Seven-piece upper counterweights
Innovative and fast counterweight removal system
Optional “Quick-Draw” cylinder mounted in base section for self-assembly and disassembly
Pendant storage on top of boom extension sections for transport

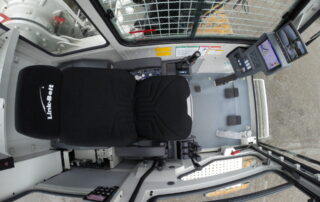

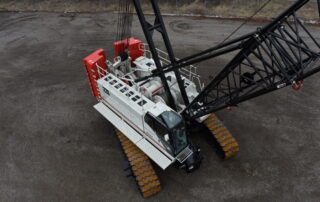

Larger operator’s cab with standard modern features
Vision Package includes rearview, winch-view, and left side swing camera system with color monitor
Hydraulic flow volume dials for precision control
Integral air conditioning and heating
HSL capacity limiter with full-color graphic display
