TCC-800 - Link-Belt Cranes

TCC-800

Base Rating	80 USt @ 9 ft 75 mt @ 3 m
Main Boom	Four-Section Formed Boom Four-Section Formed Boom
Length (min-max)	38.6 ft – 120.1 ft 11.8 m – 36.6 m
Telescope System	Full Power Full Power
SmartFly Attachment	35 ft – 58 ft 35 ft – 58 ft
Maximum Tip Height	184.5 ft 56.2 m
Engine Make & Model	Cummins QSB6.7 Tier 4 Final/Stage V Cummins QSB6.7 Tier 4 Final/Stage V
Horsepower	232 hp @ 2,000 rpm 173 kW @ 2,000 rpm
Maximum Line Pull / Maximum Line Speed	18,183 lbs / 449 fpm 8 248 kg / 136.8 mpm
Standard Upper Weights	38,500 lbs 17 463 kg
Standard Lower Weights	6,000 lbs 2 722 kg
Main Transport Load	99,500 lbs 45 187 kg
Overflow Load	1 1

View Larger

Brochure

Technical Data

All Cranes Telescopic Crawler Cranes

Key Features

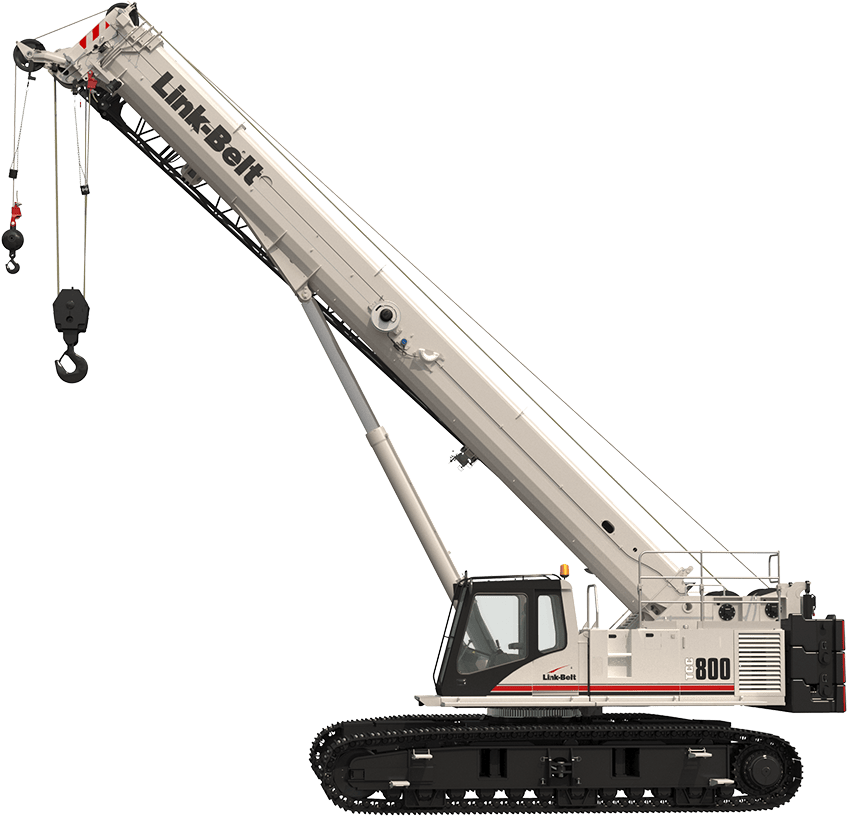

Four-section 38.6 ft – 120 ft (11.8 m – 36.5 m) full-power boom — maximum tip height of 184.5 ft (56.2 m) with SmartFly
V-CALC offers variable side frame track positions
TCC-800 offers optional one- or two-piece 35 ft – 58 ft (10.6 m – 17.6 m) fly
TCC-800 also includes a maximum four-degree list chart for increased performance in varying job site conditions

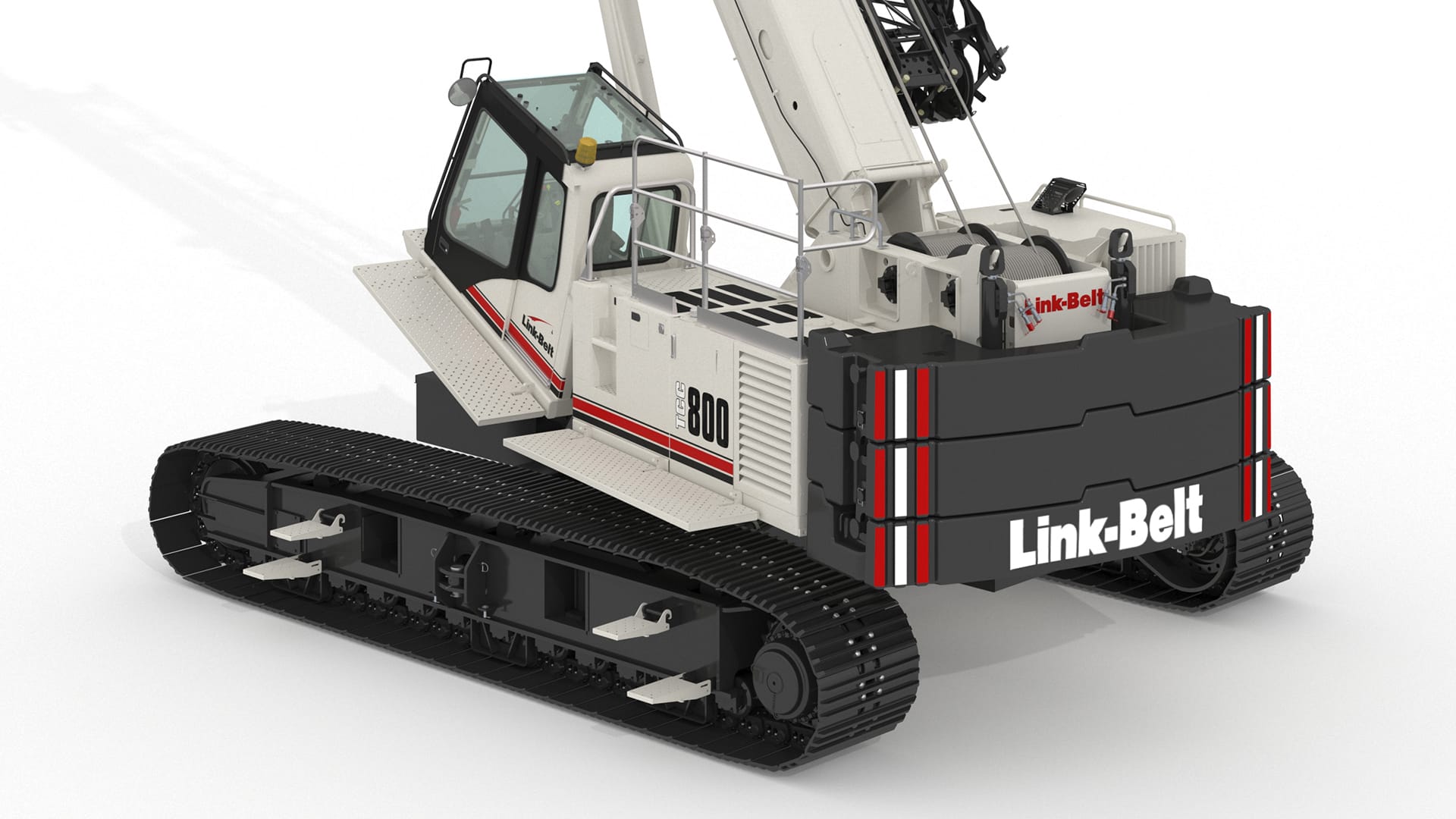

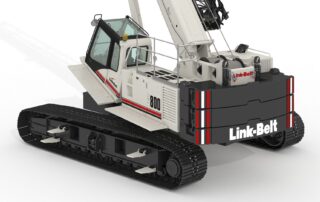

Self-assembles with 38,500 lbs (17 463 kg) of upper counterweight and two 3,000 lb (1 360 kg) sections of car body counterweight
TCC-800 moves in two loads: main unit transports under 100,000 lbs (45 359 kg) with fly, side frames attached, hook block and ball, lifting sheave, and a full tank of fuel
Clearance height on a lowboy transport trailer stays below 13 ft (3.9 m)

Medios de comunicación

Frequently Asked Questions

What is the boom configuration of the TCC-800?GRIFFIN FLETCHER2026-06-24T09:09:04-05:00

What is the boom configuration of the TCC-800?

The TCC-800 comes with a new four-section 38–120-foot full-power boom that reaches a maximum tip height of 184.5 feet with full boom and Link-Belt’s SmartFly pinning system.

How do the TCC-800’s V-CALC capabilities aid operation?GRIFFIN FLETCHER2026-06-24T09:08:29-05:00

How do the TCC-800’s V-CALC capabilities aid operation?

V-CALC, in the case of the new TCC-800, offers an added flexibility to operate the crane with side frames in asymmetric configurations.

How does the TCC-800 travel?GRIFFIN FLETCHER2026-06-24T09:07:51-05:00

How does the TCC-800 travel?

For transport, the TCC-800 moves in two loads. Its main unit transports under 100,000 pounds with a fly, side frames attached, a hook block, and a ball. Its overflow includes counterweight sections and stays below 44,500 pounds.
