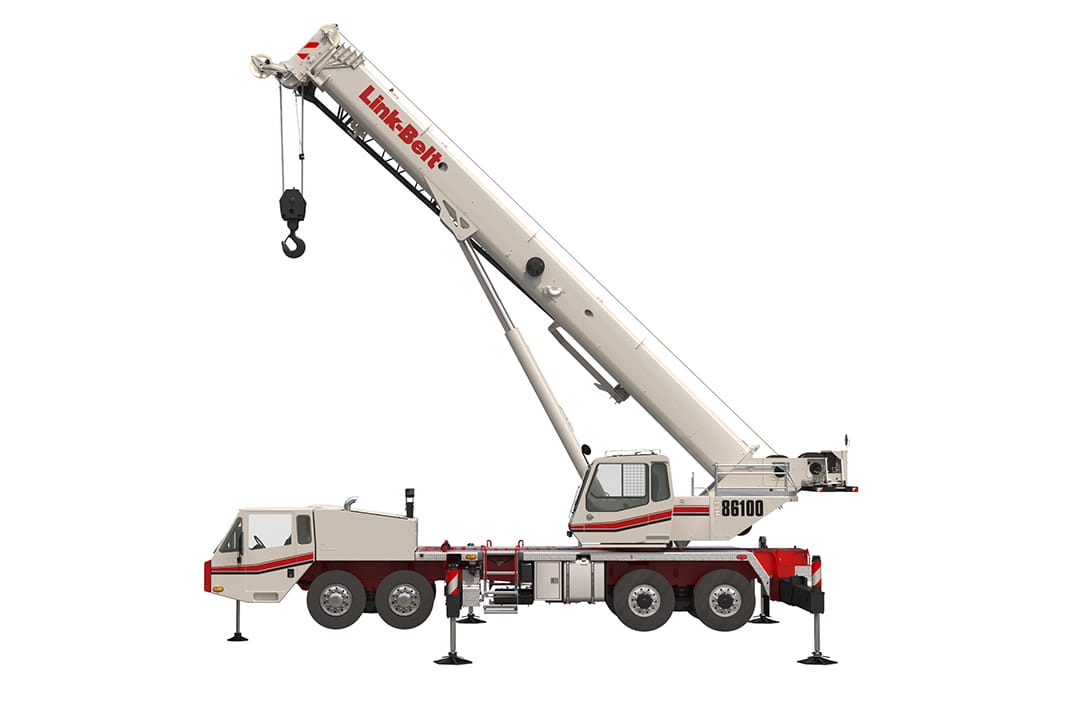

HTT-86100 - Link-Belt Cranes

HTT-86100

Nominal Capacity @ Radius	100 USt @ 7 ft 85 mt @ 2.1 m
Standard Boom	38 ft – 140 ft 11.6 m – 42.7 m
Telescope System	Pin & Latch Pin & Latch
Attachment - Option 1	A: 35 ft Bi-Fold Lattice Fly / B: 35 ft – 58 ft Bi-Fold Lattice Fly A: 10.7 m Bi-Fold Lattice Fly / B: 10.7 m – 17.7 m Bi-Fold Lattice Fly
Attachment - Option 2	(1) or (2) 16 ft insert(s) (1) or (2) 4.9 m insert(s)
Maximum Tip Height	237 ft 72.2 m
Maximum Line Pull	12,920 lbs std cable / 15,600 lbs opt cable 57.5 kN std cable / 69.4 kN opt cable
Maximum Speed	480 fpm 146.3 m/min

Key Features

Greaseless 38 ft – 140 ft pin and latch five-section boom
Manually offsetable one- or two-piece fly: offsetable to 2°, 15°, 30°, and 45°
One or two available lattice extensions to reach max tip height of 237 ft
Full fly is stowable on the machine, and no capacity deducts for stowed attachment
Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
Steerable rear axles — simple control switch in the carrier cab
Greatly reduced turning radius during travel
Front and rear tires and wheels are interchangeable
Transports under 97,000 lbs with 11,500 lbs of counterweight, two-piece fly, block, and ball installed
“Stow ‘n go” outrigger pontoons are easily secured for transport
Cummins X12: EPA 2022 Compliant On-Highway 450 HP engine
ZF TraXon (no clutch pedal) Manual Transmission
Link-Belt Pulse operating system, including CALC-selectable outrigger extension system
Link-Belt Vision Package – Standard
Flat deck design — maintains four points of access regardless of upper position
Pull-out CabWalk for ease of access to and from the operator’s cab
