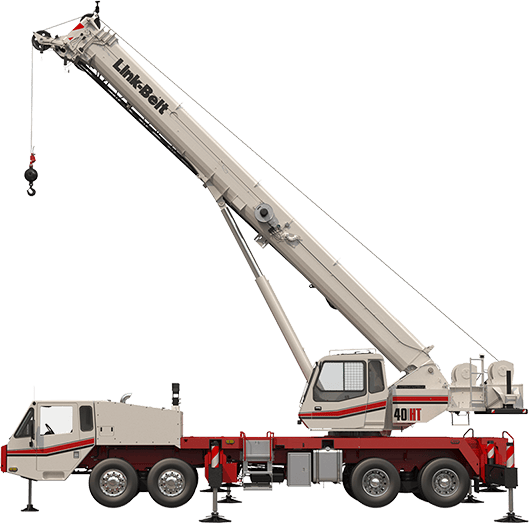

40|HT - Link-Belt Cranes

40|HT

Nominal Capacity @ Radius	40 USt @ 10 ft 40 mt @ 3 m
Standard Boom	36.8 ft – 115 ft 11.2 m – 35 m
Telescope System	Full Power Full Power
Attachment - Option 1	28.5 ft Bi-Fold Lattice Fly 8.7 m Bi-Fold Lattice Fly
Attachment - Option 2	28.5 ft – 51 ft Bi-Fold Lattice Fly 8.7 m – 15.5 m Bi-Fold Lattice Fly
Maximum Tip Height	171 ft 52.2 m
Maximum Line Pull	15,822 lbs 70.7 kN
Maximum Speed	462 fpm 140.8 m/min

Key Features

Greaseless 36.8 ft – 115 ft full-power four-section formed boom (five feet longer than predecessor)
Manually offsetable one- or two-piece fly: offsetable to 2°, 20°, and 40°
Full fly is stowable on the machine, and no capacity deducts for stowed attachment
Transports under 84,000 lbs with full 18,700 lb counterweight
EPA 2022 Compliant On-Highway 370 HP Cummins L9 Engine
ZF AS-Tronic (no clutch pedal) Manual Transmission
Link-Belt Pulse operating system
Link-Belt Vision Package – Standard
Flat, textured finish deck design — maintains four points of access regardless of upper position
